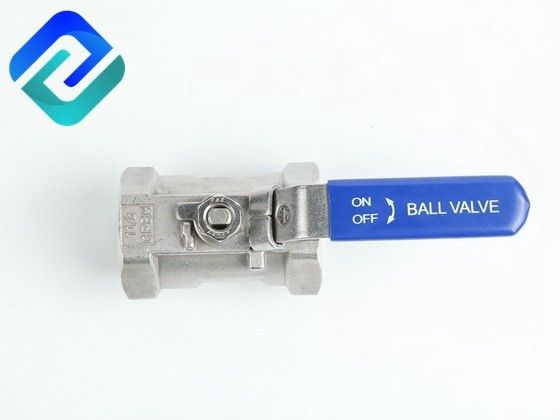

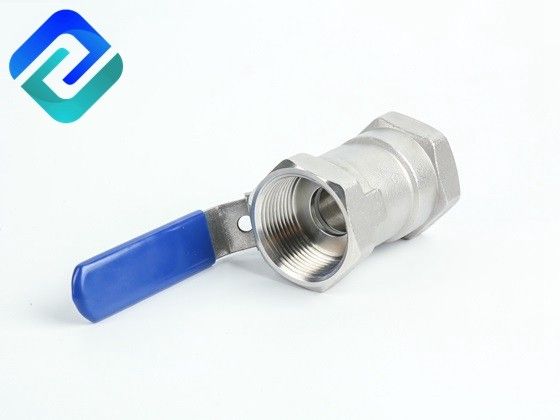

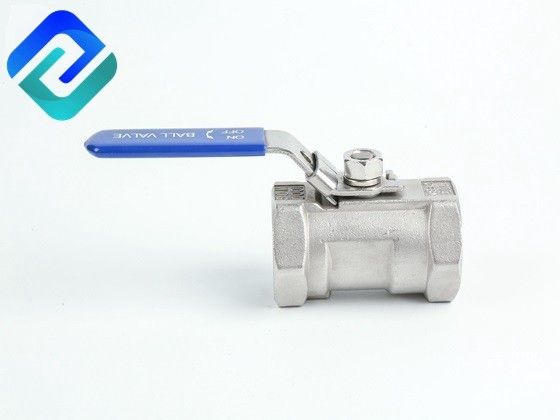

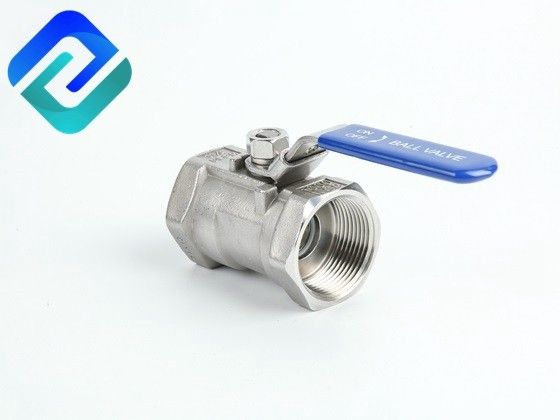

Precision casting one-piece ball valve reduced port with lock
Pressure rating: 1000PSI (PN63)
Thread standard: ANSI B2.1, BS21, ISO7/1
Working temperature: -25℃+180℃
Material: CF8M, CF8, CF3M, WCB
Inspection standard: API 598, EN 12266

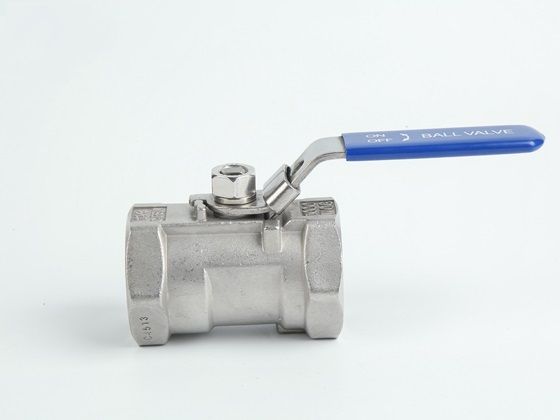

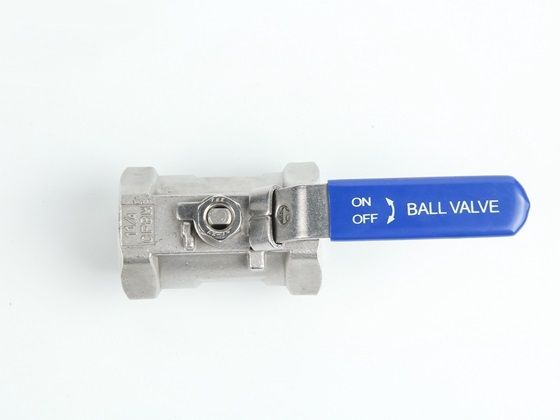

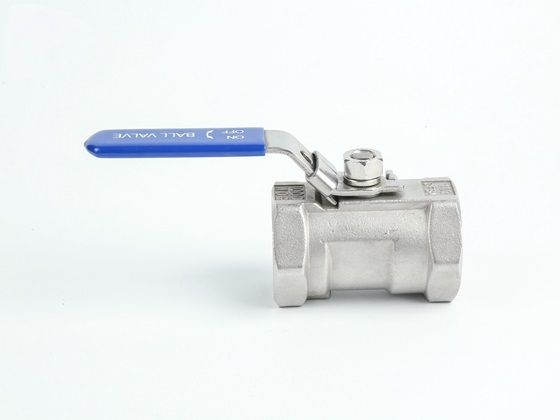

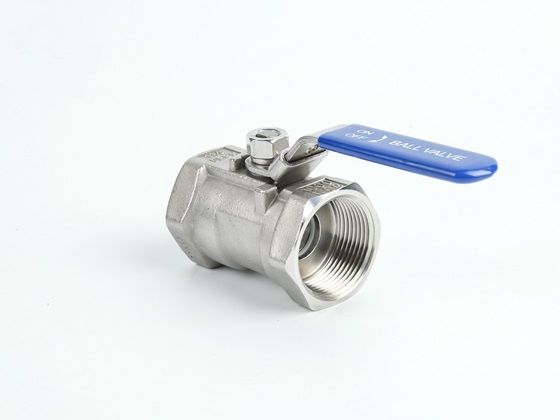

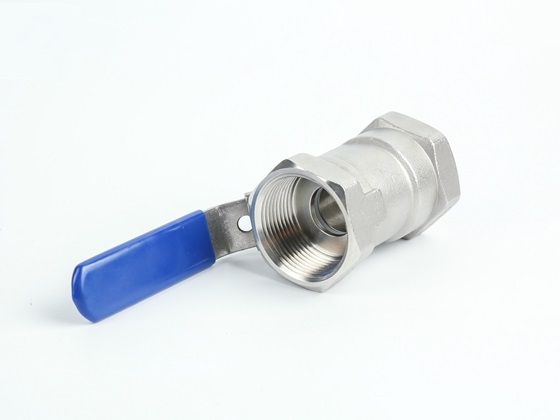

Products Description
Pressure rating: 1000PSI (PN63)
Thread standard: ANSI B2.1, BS21, ISO7/1
Working temperature: -25℃+180℃
Material: CF8M, CF8, CF3M, WCB
Inspection standard: API 598, EN 12266
MATERIAL LIST
ITEM | PART | MATERIAL | QTY | ||
1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
2 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 |
3 | SEAT | PTFE | 2 | ||
4 | BALL | 304 | 304 | 316 | 1 |
5 | STEM | 304 | 304 | 316 | 1 |
6 | THRUST WASHER | PTFE | 1 | ||
7 | PACKING | PTFE | 1 | ||
8 | GLAND NUT | 304 | 304 | 304 | 1 |
9 | LOCK | 304 | 304 | 304 | 1 |
10 | HANDLE | 304 | 304 | 304 | 1 |
11 | HANDLE COVER | PLASTIC | 1 | ||
12 | NUT | 304 | 304 | 304 | 1 |
13 | SPRING WASHER | 304 | 304 | 304 | 1 |
DIMENSION TABLE
SIZE | Φ d | L | H | W | N.M | KGS | |
DN6 | 1/4” | 6 | 41 | 32 | 68 | 4 | 0.06 |
DN10 | 3/8” | 8 | 45 | 33 | 68 | 4 | 0.09 |
DN15 | 1/2” | 10 | 57 | 41 | 94 | 6 | 0.17 |
DN20 | 3/4” | 11.5 | 59 | 45 | 95 | 7 | 0.23 |
DN25 | 1” | 16 | 72 | 48 | 96 | 8 | 0.37 |
DN32 | 1-1/4” | 20 | 77 | 58 | 107 | 10 | 0.55 |
DN40 | 1-1/2” | 26 | 84 | 66 | 127 | 14 | 0.88 |
DN50 | 2” | 32 | 100 | 75 | 131 | 16 | 1.31 |
DN65 | 2-1/2” | 38 | 111 | 86 | 171 | 25 | 2.15 |
DN80 | 3” | 50 | 132 | 86 | 172 | 39 | 3.42 |
DN100 | 4” | 64 | 180 | 122.5 | 224 | 47 | 5.85 |
