Y Strainer Installation Guide and Tips

May. 25, 2024

Y strainers are essential components used in various piping systems to filter out debris and protect equipment from damage. Proper installation of a Y strainer ensures efficient operation and longevity. This guide provides step-by-step instructions and valuable tips for installing a Y strainer in your system.

Understanding Y Strainers

Y strainers are mechanical devices that remove unwanted particles from liquids, gases, or steam. They are named for their Y-shaped design, which includes a filter element housed within the body of the strainer. Y strainers are commonly used in water systems, HVAC systems, chemical processing, and other industrial applications.

Pre-Installation Considerations

Before installing a Y strainer, consider the following factors to ensure a successful installation:

1. Material Compatibility

Ensure that the material of the Y strainer is compatible with the fluid or gas it will filter. Common materials include stainless steel, carbon steel, and brass, each suited to different applications and environments.

2. Size and Flow Rate

Choose the appropriate size of the Y strainer based on the pipe diameter and the system's flow rate. Proper sizing ensures efficient filtration without restricting flow.

3. Pressure Rating

Verify that the Y strainer’s pressure rating matches the system’s operating pressure to prevent leaks or damage.

4. Filtration Requirements

Determine the required mesh size or perforation of the strainer element to effectively capture debris without impeding flow.

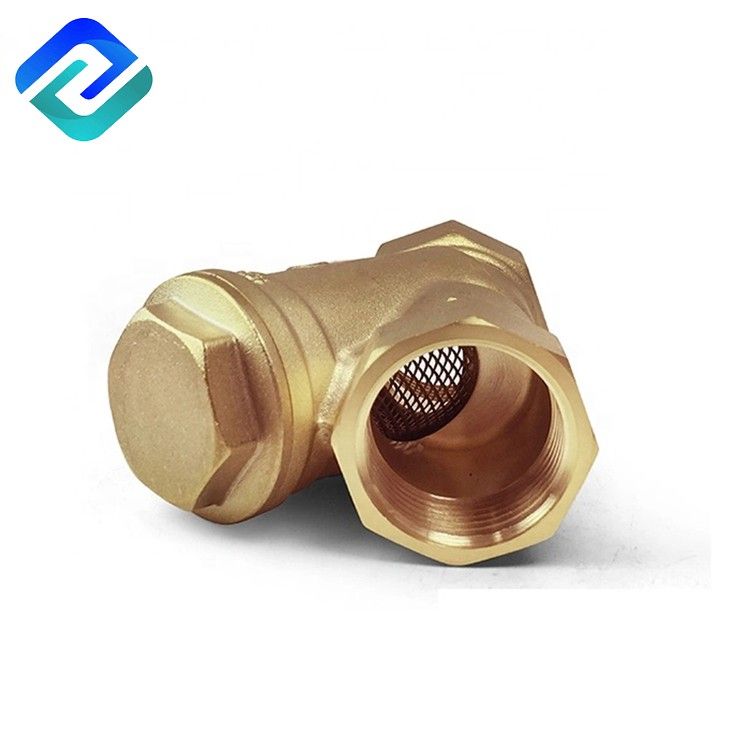

Y Strainer

Y Strainer

Installation Steps

Follow these steps for proper installation of a Y strainer:

1. Prepare the Piping System

Shut off the system and relieve any pressure before beginning the installation. Ensure the piping is clean and free of debris that could interfere with the installation.

2. Choose the Installation Location

Select a location that provides easy access for maintenance and cleaning. The strainer should be installed upstream of sensitive equipment, such as pumps, valves, and meters, to protect them from debris.

3. Install the Strainer in the Correct Orientation

Position the Y strainer with the strainer element facing downward. This orientation allows debris to collect in the strainer element and facilitates easy removal during cleaning. Ensure the direction of flow indicated on the strainer matches the system’s flow direction.

4. Connect the Strainer to the Piping

Use appropriate fittings to connect the Y strainer to the piping system. Ensure all connections are secure and leak-free. Threaded connections should be sealed with Teflon tape or pipe dope, while flanged connections should use the correct gasket material.

5. Support the Piping

Provide adequate support for the piping on both sides of the strainer to prevent undue stress on the strainer and connections. This helps maintain the integrity of the installation and prevents leaks.

Post-Installation Tips

After installing the Y strainer, follow these tips for optimal performance and maintenance:

1. Initial System Flush

Before placing the system into regular operation, perform an initial flush to remove any debris that may have entered the piping during installation. This helps prevent clogging and ensures the strainer operates efficiently.

2. Regular Maintenance

Establish a routine maintenance schedule to inspect and clean the strainer element. The frequency of maintenance depends on the application and the amount of debris in the system. Regular cleaning prevents clogging and ensures consistent flow rates.

3. Monitor Pressure Drop

Monitor the pressure drop across the strainer to identify when cleaning or replacement is necessary. A significant increase in pressure drop indicates that the strainer element is clogged and requires attention.

4. Spare Parts Availability

Keep spare strainer elements and gaskets on hand to facilitate quick replacements during maintenance. This minimizes downtime and ensures continuous operation of the system.

5. Proper Disposal of Debris

When cleaning the strainer element, properly dispose of the collected debris to prevent environmental contamination and maintain a safe working area.

Frequently Asked Questions about Y Strainer Installation

Q: Can Y strainers be installed in any orientation?

A: Y strainers should be installed with the strainer element facing downward. This orientation allows debris to collect in the element and facilitates easy removal during cleaning.

Q: How often should a Y strainer be cleaned?

A: The cleaning frequency depends on the application and the amount of debris in the system. Regular inspections and monitoring of the pressure drop across the strainer will help determine the appropriate cleaning schedule.

Q: Can a Y strainer be used with both liquids and gases?

A: Yes, Y strainers can be used to filter both liquids and gases. Ensure that the material and design of the strainer are compatible with the specific fluid or gas being filtered.

Q: What is the typical pressure drop across a Y strainer?

A: The pressure drop across a Y strainer varies depending on the flow rate, strainer element, and the amount of debris collected. Regular monitoring of the pressure drop helps identify when cleaning is necessary.

Q: Are there alternatives to Y strainers for filtration?

A: Yes, alternatives include basket strainers, T strainers, and automatic self-cleaning strainers. The choice of strainer depends on the specific application, flow rate, and maintenance requirements.

In conclusion, proper installation and maintenance of a Y strainer are crucial for ensuring efficient filtration and protection of your piping system. By following the steps and tips outlined in this guide, you can achieve optimal performance and longevity of your Y strainer, safeguarding your equipment and maintaining smooth operation.
