Stable quality Stainless Steel Camlock Quick Coupling fittings

Stainless Steel Camlock Quick Coupling

Basic information:

Material: made in Stainless Steel
Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8" etc
Thread: NPT, BSP(female thread parallel usually is BSPP, male thread tapered usually is BSPT)
Sealings' material: NBR, EPDM, Viton, PTFE envelop gasket
Standard: A - A-59326(previously called MIL-C-27487)or DIN 2828
Pressure: 6.4MPA
1X20GP container: 20 pallets can be loaded

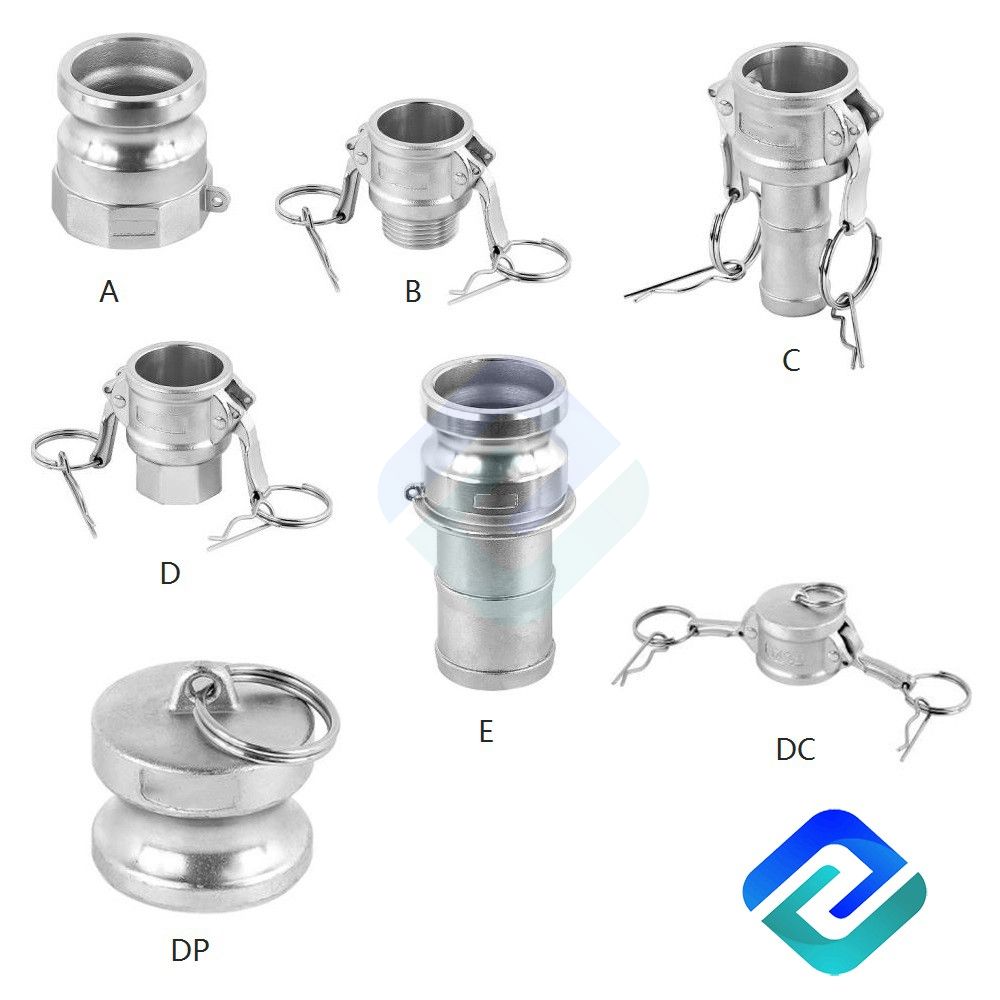

Type:

A, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)

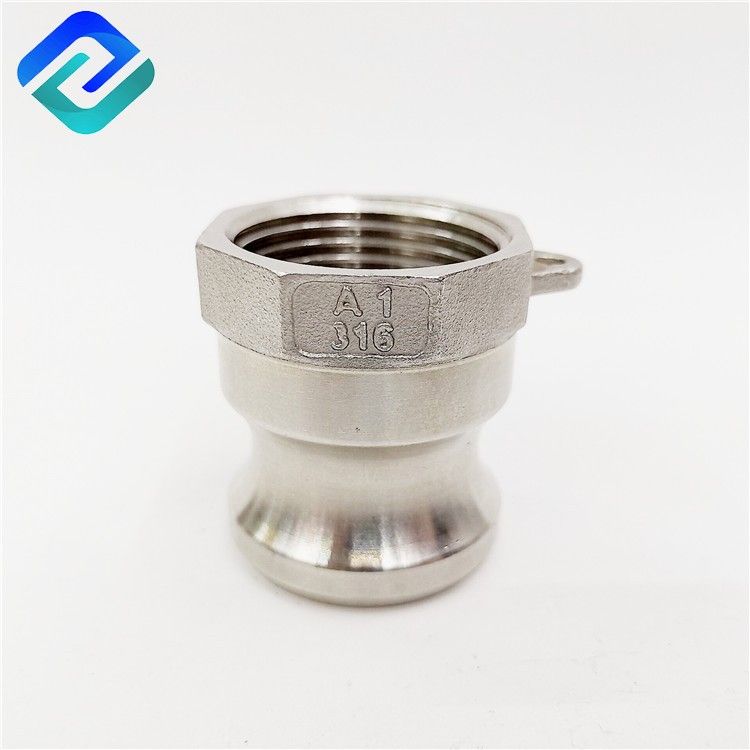

Type A: Male Adapter x Female

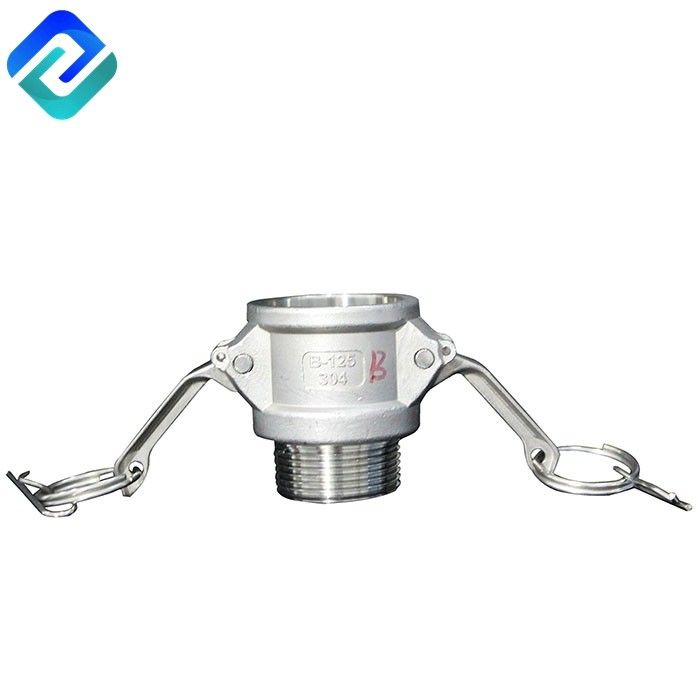

Type B: Female Coupler x Male

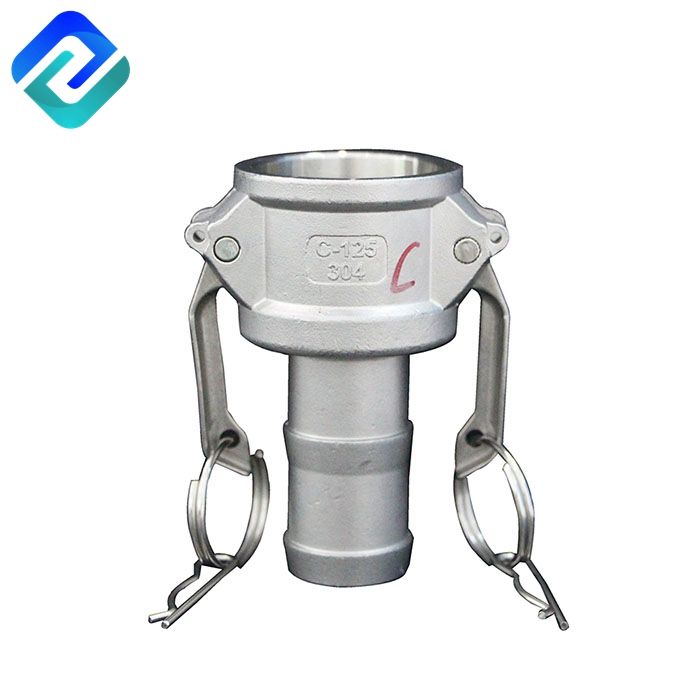

Type C: Female Coupler x Hose Shank
Type D: Female Coupler x Female
Type E: Male Adapter x Hose Shank
Type F: Male Coupler x Male

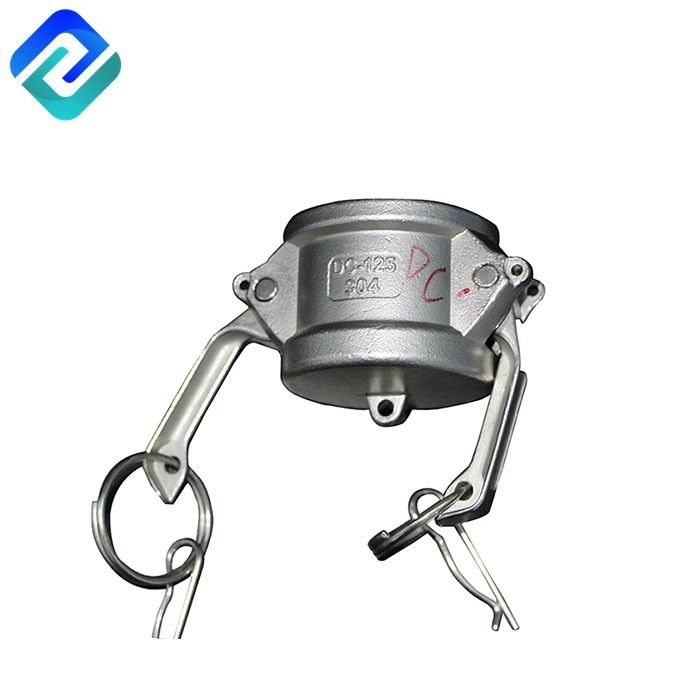

Type DC: Dust Cap
Type DP: Dust Plug

Remark: Can be customized.

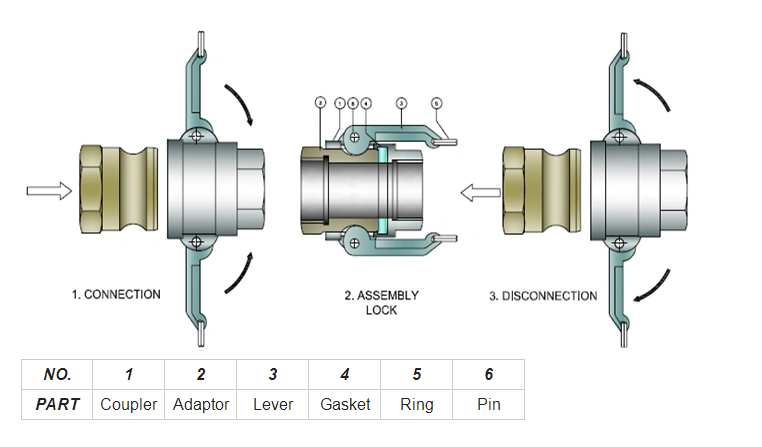

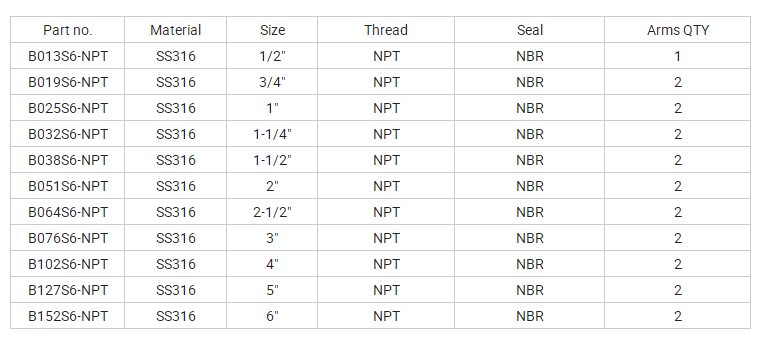

Specification & Working principal:
