  • 2 pc 304  316 grade stainless steel ball valve with BSP thread DN6~DN100

2 pc 304 316 grade stainless steel ball valve with BSP thread DN6~DN100

The stainless steel two-piece ball valve and the flange gate valve are the same type of valve. The difference is that the closing part is a ball. The ball rotates around the center line of the valve body to achieve opening and closing.

Products Description

2 pc 304  316 grade stainless steel ball valve with BSP thread DN6~DN100

The stainless steel two-piece ball valve and the flange gate valve are the same type of valve. The difference is that the closing part is a ball. The ball rotates around the center line of the valve body to achieve opening and closing. The ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. The two-piece ball valve and the three-piece ball valve are a new type of valve widely used in recent years.


The fluid resistance is small, and the resistance coefficient is equal to that of the pipe section of the same length. Simple structure, small size and light weight. It is tight and reliable. At present, the sealing surface materials of ball valves are widely used with plastics and have good sealing performance. It is easy to operate and quick to open and close. It only needs to rotate 90 ° from fully open to fully closed to facilitate remote control. The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and the disassembly and replacement are more convenient. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium. When the medium passes through, it will not cause corrosion of the valve sealing surface.


It has a wide range of applications, from small diameters to a few millimeters to a few meters, from high vacuum to high pressure.


The stainless steel two-piece ball valve can be divided into straight-through type, three-way type and right-angle type according to its channel position. The latter two kinds of ball valves are used to distribute the medium and change the flow direction of the medium. Stainless steel two-piece ball valve

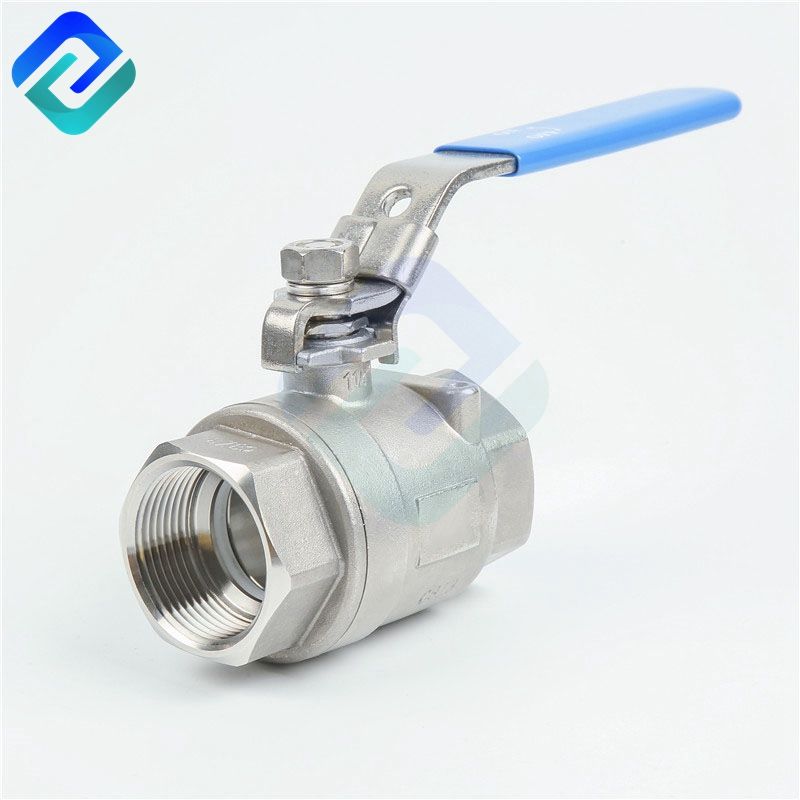

2 pc 304 316 grade stainless steel ball valve with BSP thread DN6~DN100

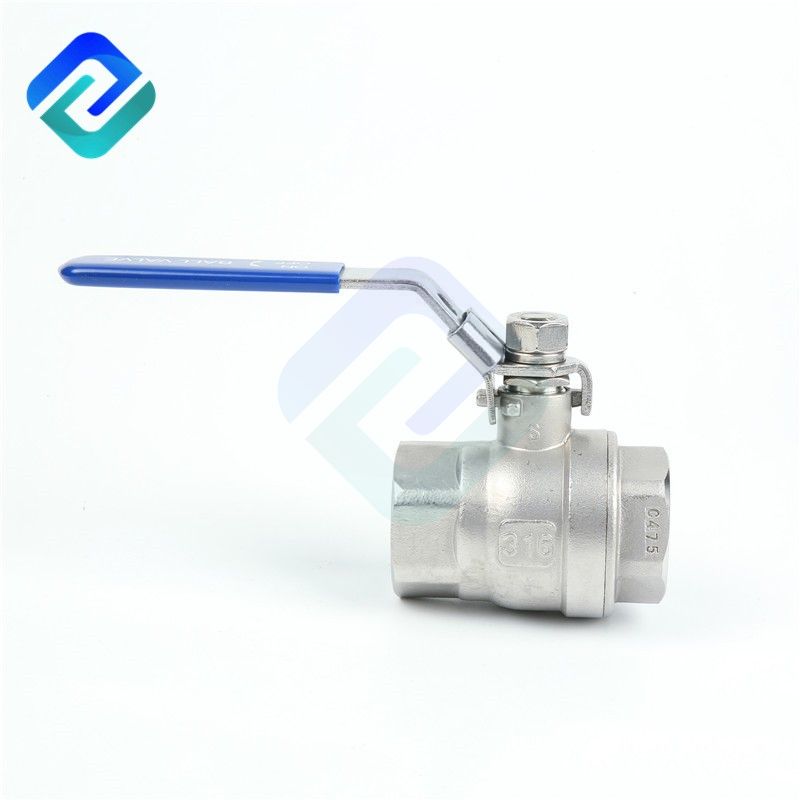

2 pc 304 316 grade stainless steel ball valve with BSP thread DN6~DN100

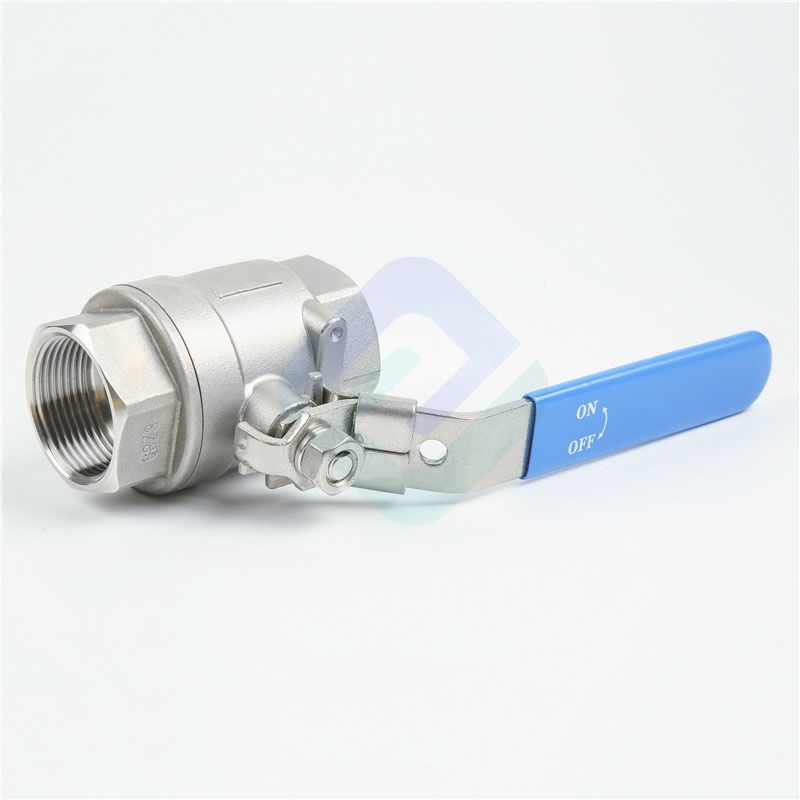

2 pc 304 316 grade stainless steel ball valve with BSP thread DN6~DN100

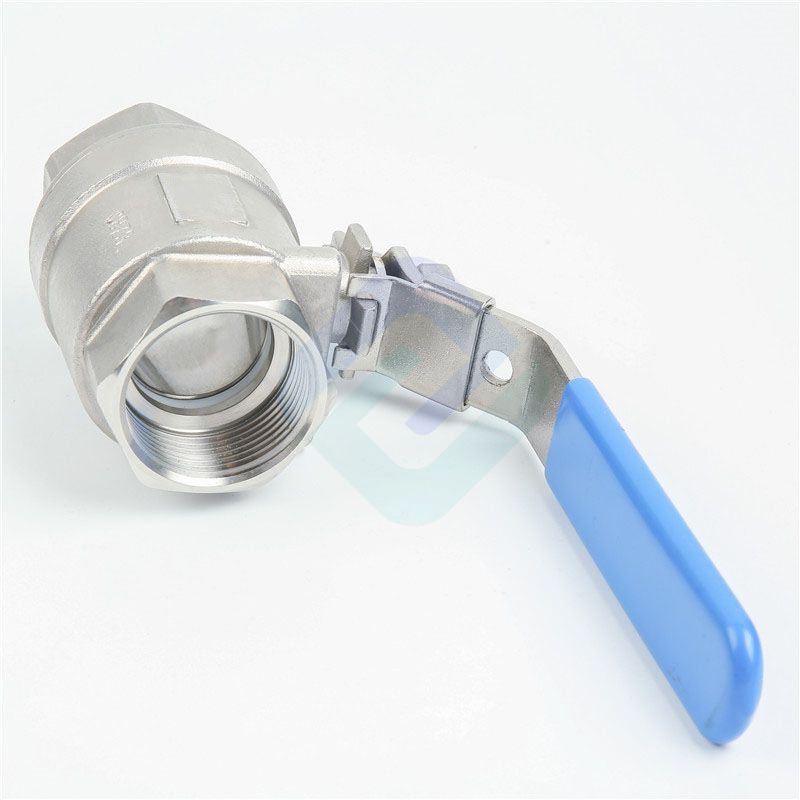

2 pc 304 316 grade stainless steel ball valve with BSP thread DN6~DN100

Investment Casting for body and Cap

Internal Entry Blow-Out Proof Stem

Pressure Rating:2000PSI (PN125)

Thread End:ANSI B2.1,BS21,ISO7/1

Working Temperature:-25+180

Material:CF8M,CF8,CF3M,WCB

Inspection Testing:API 598,EN 12266



MATERIAL LIST

ITEM

PART

MATERIAL

QTY

1

BODY

A216-WCB

A351-CF8

A351-CF8M

1

2

SEAT

PTFE/RPTFE

2

3

BALL

304

304

316

1

4

GASKET

PTFE

1

5

CAP

A216-WCB

A351-CF8

A351-CF8M

1

6

STEM

304

304

316

1

7

THRUST WASHER

PTFE

1

8

PACKING

PTFE

1

9

GLAND NUT

304

304

304

1

10

HANDLE

304

304

304

1

11

SPRING WASHER

304

304

304

1

12

NUT

304

304

304

1

13

LOCK

304

304

304

1

14

HANDLE COVER

PLASTIC

1





DIMENSION TABLE



SIZE

Φ d

L

H

W

N.M

KGS

DN6

1/4

12.5

56

48

105

4

0.28

DN10

3/8

12.5

56

48

105

4

0.28

DN15

1/2

15

66

53

109

5

0.42

DN20

3/4

20

78

61

134

8

0.57

DN25

1

25

89

75

150

10

1.06

DN32

1-1/4

32

104

72

150

14

1.49

DN40

1-1/2

38

112

90

177

18

2.38

DN50

2

50

123

102

183

25

3.40
