  • Precision casting two-piece American standard flange ball valve (with high platform)

  • Precision casting two-piece American standard flange ball valve (with high platform)

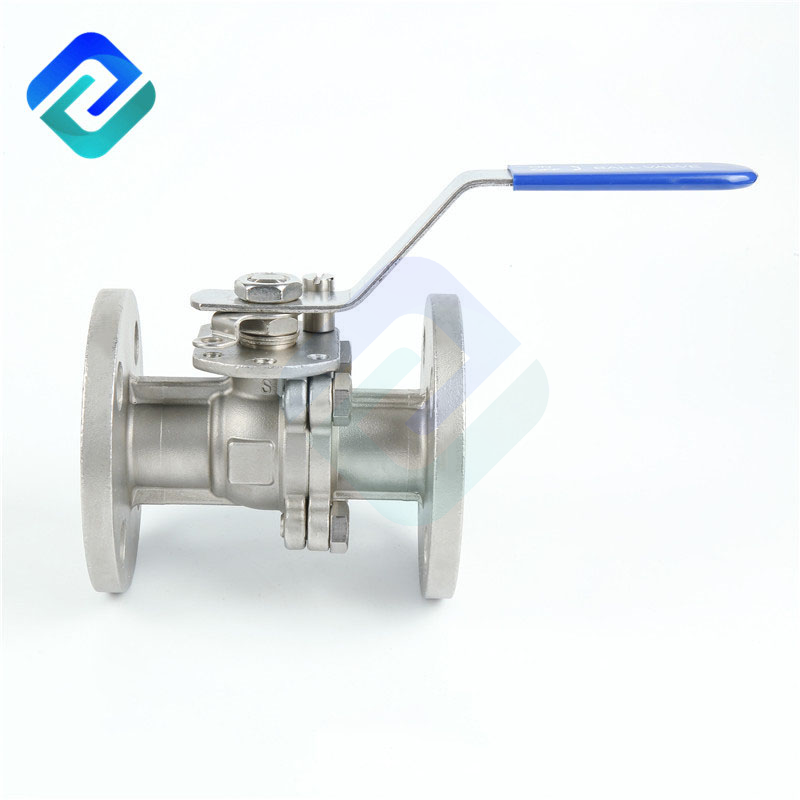

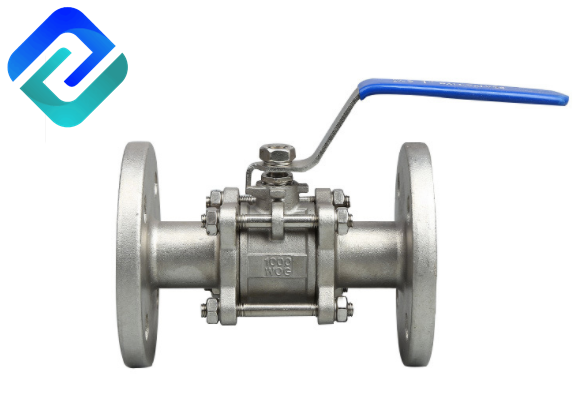

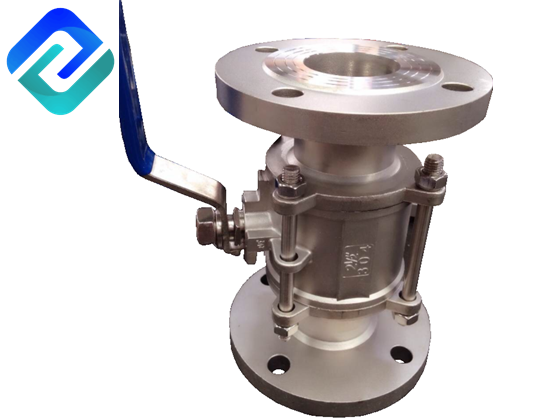

Precision casting two-piece American standard flange ball valve (with high platform)

Precision casting two-piece American standard flange ball valve (with high platform)

Flange standard: ASME B16.5

Structure length: ANSI 16.10

Drive disk standard: ISO 5211

Pressure rating: 1/2 "-2": 150LB

Working temperature: -25℃+180℃

Material: CF8M, CF8, CF3M, WCB


Products Description

Precision casting two-piece American standard flange ball valve (with high platform)

Flange standard: ASME B16.5

Structure length: ANSI 16.10

Drive disk standard: ISO 5211

Pressure rating: 1/2 "-2": 150LB

Working temperature: -25℃+180℃

Material: CF8M, CF8, CF3M, WCB

Precision casting two-piece American standard flange ball valve (with high platform)

Precision casting two-piece American standard flange ball valve (with high platform)

MATERIAL LIST

ITEM

PART

MATERIAL

QTY

1

BODY

A216-WCB

A351-CF8

A351-CF8M

1

2

CAP

A216-WCB

A351-CF8

A351-CF8M

1

3

BALL

304

304

316

1

4

SEAT

RPTFE

2

5

STEM

    304

   304

     316

1

6

THRUST WASHER

PTFE

1

7

O RING

VITON

1

8

PACKING

PTFE

1

9

GLAND NUT

304

1

10

BELLEVLLE WASHER

                   301

2

11

NUT

304

2

12

NUT STOPPER

304

1

13

PLATE

                   304

1

14

HANDLE

304

1

15

HANDLE COVER

                 PLASTIC

1

16

LOCK

304

1

17

GASKET

PTFE

1

18

BOLT

                   304

4(6,8)

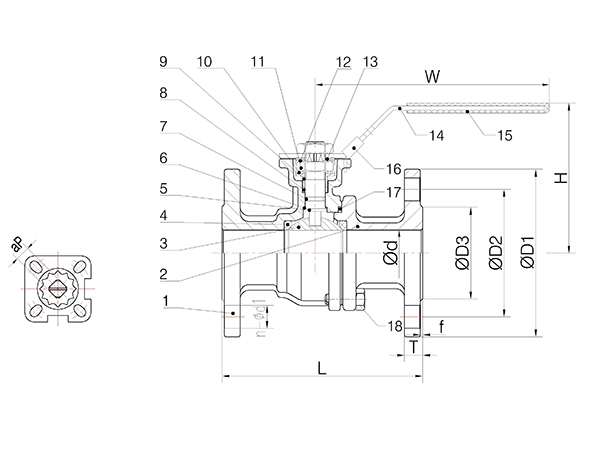

DIMENSION TABLE

SIZE

Φ d

L

T

F

D1

D2

D3

n-φd1

H

W

P

ISO5211

N.M

KGS

DN15

1/2

15

115

14

2

95

65

44

4-14

80

145

9

F03/F04

5

2.90

DN20

3/4

20

120

16

2

105

75

59

4-14

85

145

9

F03/F04

8

3.39

DN25

1

25

125

18

2

115

85

68

4-14

95

160

11

F04/F05

10

3.73

DN32

1-1/4

32

130

18

2

140

100

78

4-18

108

160

11

F04/F05

14

4.95

DN40

1-1/2

38

140

18

3

150

110

88

4-18

115

185

14

F05/F07

18

6.11

DN50

2

50

150

20

3

165

125

102

4-18

125

185

14

F05/F07

25

8.91

DN65

2-1/2

65

170

18

3

185

145

122

4-18

148

230

17

F07/F10

48

12.80

DN80

3

76

180

20

3

200

160

138

8-18

158

230

17

F07/F10

75

18.90

DN100

4

94

190

20

3

220

180

158

8-18

192

320

17

F07/F10

110

26.61
