1. Material: CF8/CF8M/WCB
2. Body material: Stainless steel CF8, CF8M,Carbon Steel WCB
3. Medium: Water Oil Gas（WOG）
4. Structure: BALL, Shut Off Ball Valve
5. Connection:Thread End
6. Pressure Rating: 1000PSI（PN63）
Products Description

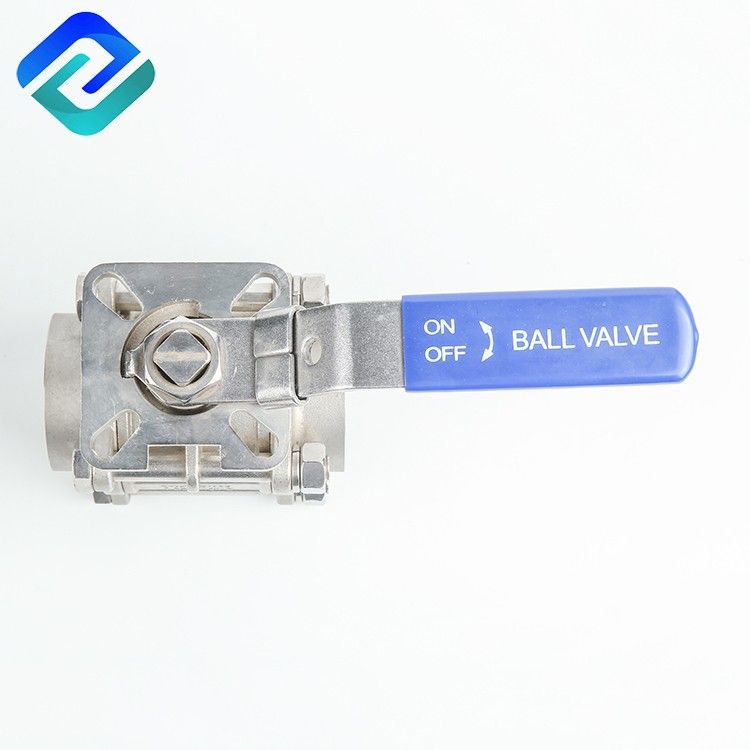

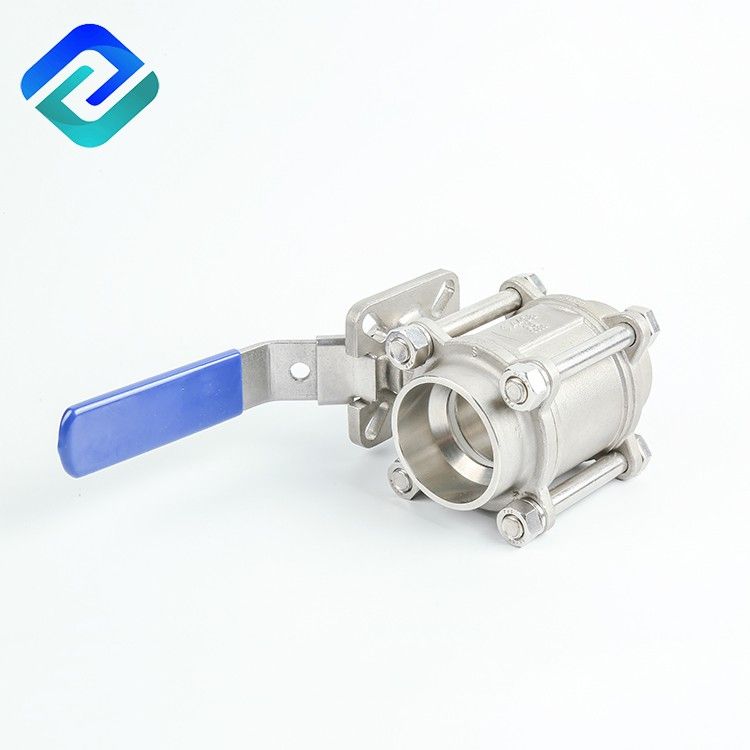

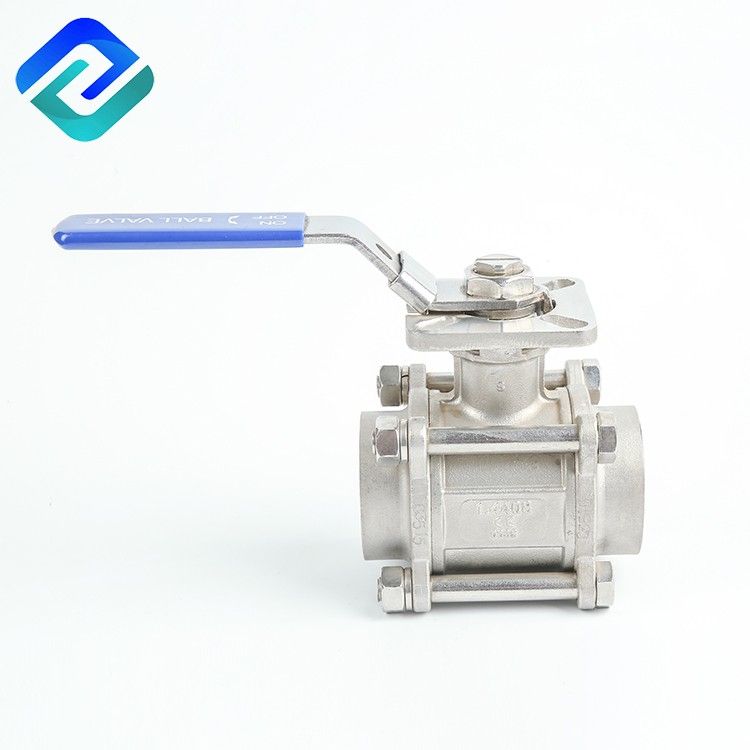

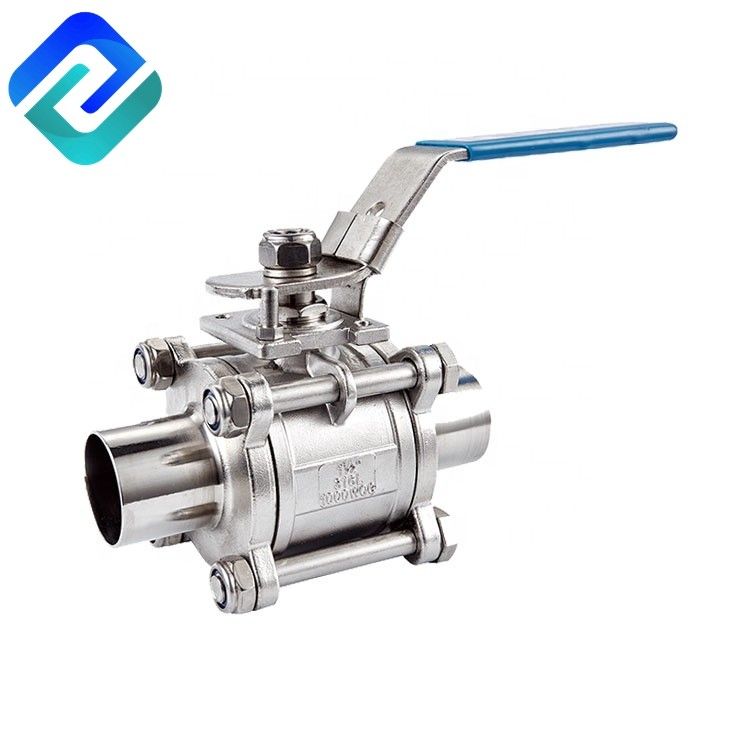

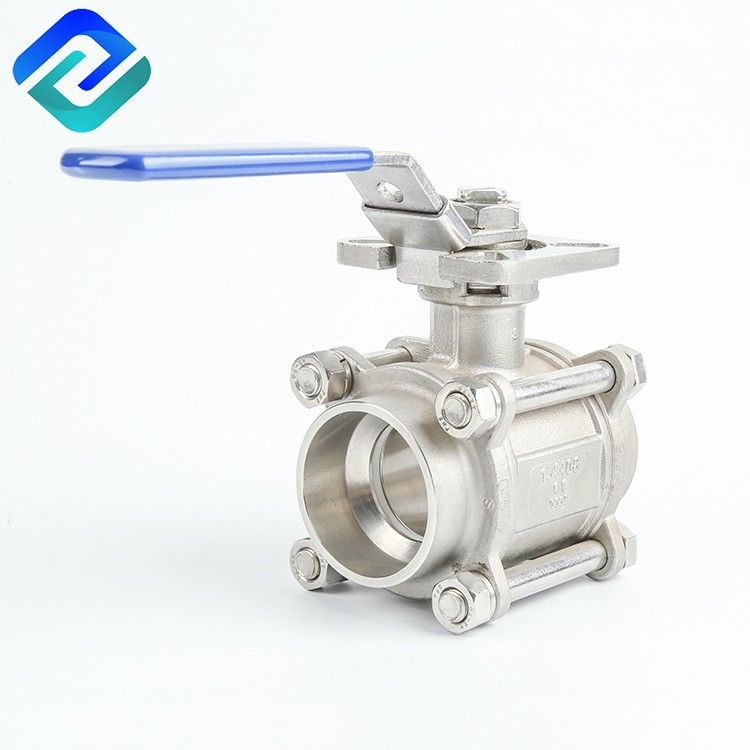

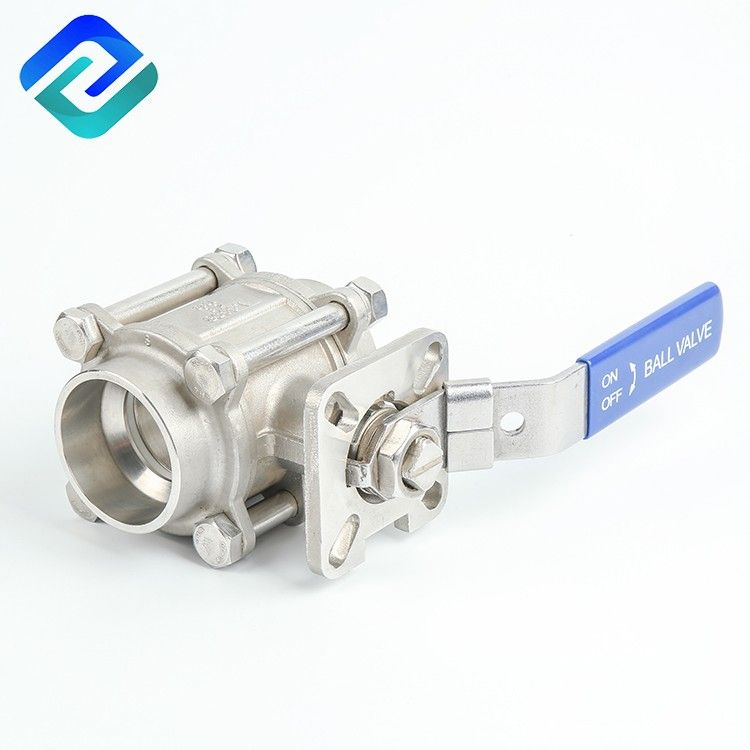

Our 1000 WOG CF8M Stainless Steel 3-PC Ball Valve is designed for high-pressure industrial applications requiring reliable shut-off performance, corrosion resistance, and long service life.Manufactured with precision casting and CNC machining, this 1000 WOG Ball Valve provides dependable sealing performance for water, oil, and gas systems under demanding operating conditions.
1000 WOG ball valve is a type of ball valve that is rated for 1000 psi (pounds per square inch) in terms of water, oil, and gas (WOG) pressure. This rating indicates the valve's ability to withstand the maximum pressure of these fluids without failure. Ball valves are widely used in various industries due to their durability, reliability, and ability to provide tight shut-off.
The term 1000 WOG indicates that the ball valve is rated for up to 1000 PSI working pressure in Water, Oil, and Gas service under standard temperature conditions.
A 1000 WOG rating ensures:
● Stable operation in medium to high-pressure systems
● Reliable shut-off performance
● Suitable use in industrial pipelines
● Enhanced safety margin for fluid control
This makes the 1000 WOG stainless steel ball valve a preferred choice for industrial projects requiring dependable pressure resistance.
1.High Pressure Performance
Compared with lower-rated valves, the 1000 WOG 3-PC Ball Valve is engineered to handle higher working pressures while maintaining leak-proof sealing. It is ideal for systems where pressure stability is critical.
2.Advantages of 3-Piece Structure
Unlike 1-piece or 2-piece designs, the 3-PC Ball Valve features a three-section bolted body construction.
Key benefits include:
● Easy disassembly without removing the valve from pipeline
● Replaceable seats and seals
● Reduced maintenance downtime
● Lower long-term operating costs
● Extended valve lifespan
For industrial facilities requiring regular maintenance, the 3-piece design offers significant operational advantages.Browse more 3-PC Ball Valve.
3. Reliable CF8M Stainless Steel Material
This valve body is manufactured from CF8M cast stainless steel, equivalent to 316 stainless steel.
CF8M material provides:
● Excellent corrosion resistance
● Strong resistance to chemical media
● Improved durability in harsh environments
● Longer service life compared to standard 304 stainless steel
For aggressive fluids or corrosive environments, CF8M 1000 WOG Ball Valve is a safer and more durable choice.
Material | Stainless Steel: SS304, SS316, CF8, CF8M |
Type | 3PC Ball Valve, Swing Check Valve, Y-Type Check Valve, Wafer Check Valve, Gate Valve, Globe Valve, H71 Check Valve, Butterfly Valve, Foot Valve |
Class | 1000PS |
Standard | Design: DIN3202-M3, DIN3357, EN12516, ASME B16.34 |
Size | 1/8” to 4” for Threaded End |
Connection | RF FF RTJ |
Application | NPT, BSP, BSPT, DIN2999, Flange End |
Certificate | CE / ISO / SGS |
1. Pressure Rating: Designed to handle up to 1000 psi, making it suitable for high-pressure applications.
2. Materials: Typically made from robust materials such as stainless steel, brass, or carbon steel to ensure durability and resistance to corrosion.
3. Design: Consists of a spherical ball with a hole through the center, which allows or blocks flow when the valve is turned.
4. Operation: Operated with a lever or handle, providing a simple and quick way to control the flow of fluids.
5. Sealing: Equipped with seats (usually made of Teflon or other durable materials) that ensure a tight seal and prevent leaks.
Main Applications of 1000 WOG Ball Valve
● Oil & Gas pipeline systems
● Chemical processing plants
● Water treatment facilities
● Industrial pump and skid systems
● HVAC systems
● Compressed air systems
● General industrial fluid control
Its pressure rating and corrosion-resistant construction make it suitable for medium to high-pressure industrial pipelines.
● High Pressure Tolerance: Can withstand high pressure, making it ideal for demanding applications.
● Durability: Made from strong, corrosion-resistant materials for long service life.
● Tight Shut-off: Provides a reliable and leak-proof seal, ensuring efficient control of fluid flow.
● Easy Operation: Simple to operate with a lever or handle, allowing for quick and precise control.
