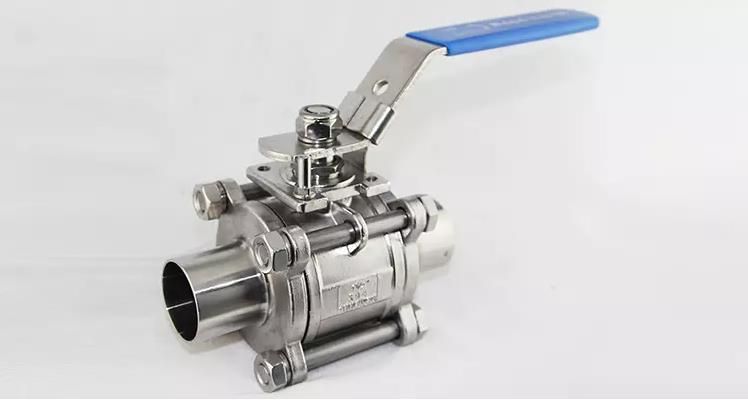

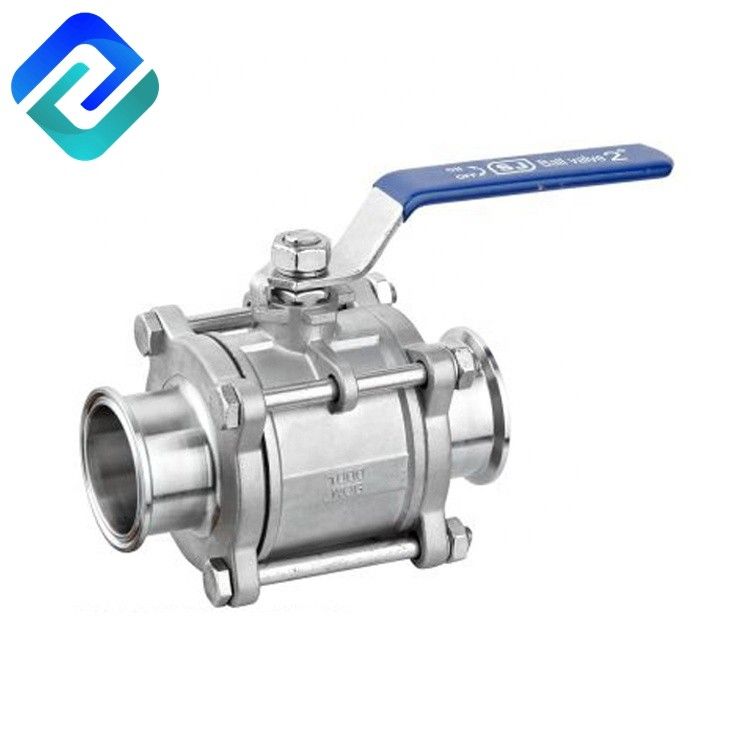

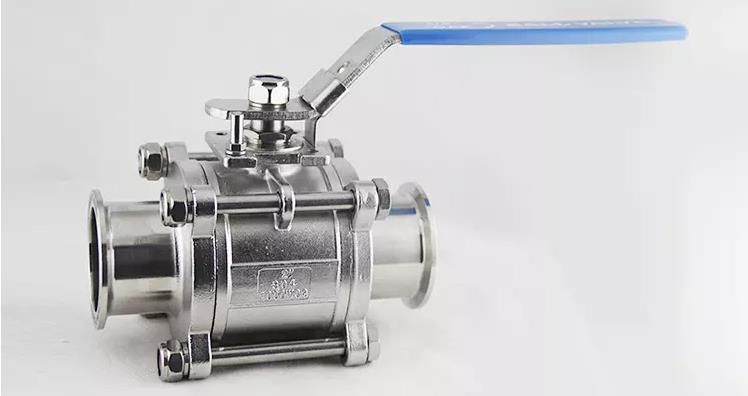

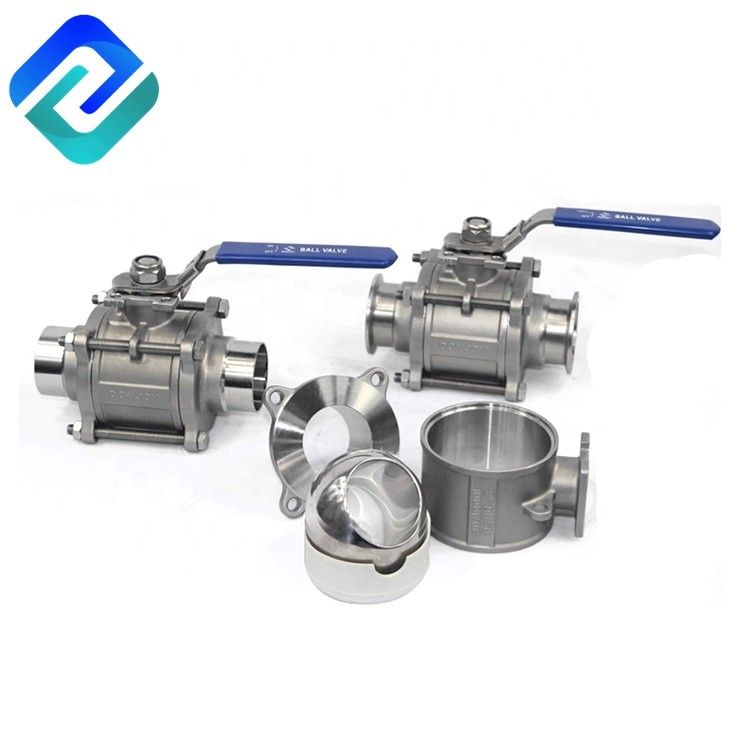

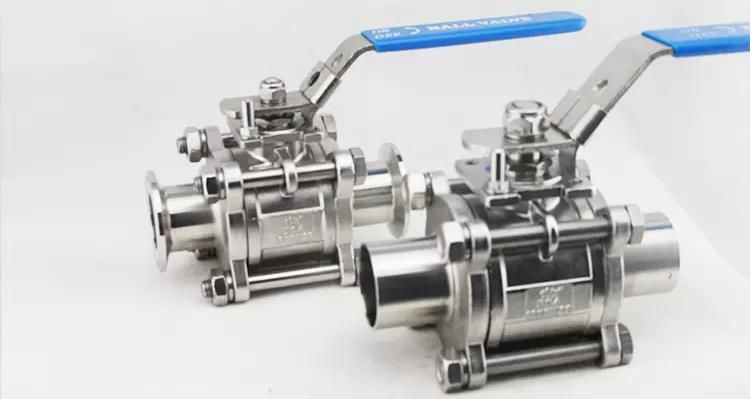

Full-package ball valve design, no retention, high clean, to meet the CIP, SIP sterilization and cleaning requirements, high temperature 150C, pressure 25bar, automatic compensation seal design, with torque, long life and other characteristics the normal switch 100,000 times, Can be equipped with a variety of executive structures, such as the electric head, horizontal pneumatic head, stainless steel three-dimensional pneumatic, the key manual handle, you can also install the control unit, positioner, position sensor, can also be installed automatic control system.
Material | Stainless steel 304, 316L. |
Application | Mainly used in bio-pharmaceuticals, food and beverage, wine, chemical and other industrial fields. |
Seal | PTFE,0 type seal ring |
Surface | All the surface CNC, 0.8rn, to RA0.4cm, electrical polishing up to 0.25cm |
| Valve stem anti-ftying design |
The connection between valve body and bonnet with positioning stage design |
Circulation |
No retention design |
Stem seal packing with compensating device |
Padlock device |
