Home >> Products >> Stainless Steel Ball Valve >> 3-WAY Ball Valve
  • stainless steel 304 / 316 1000 psi 3 way ball valve

  • stainless steel 304 / 316 1000 psi 3 way ball valve

  • stainless steel 304 / 316 1000 psi 3 way ball valve

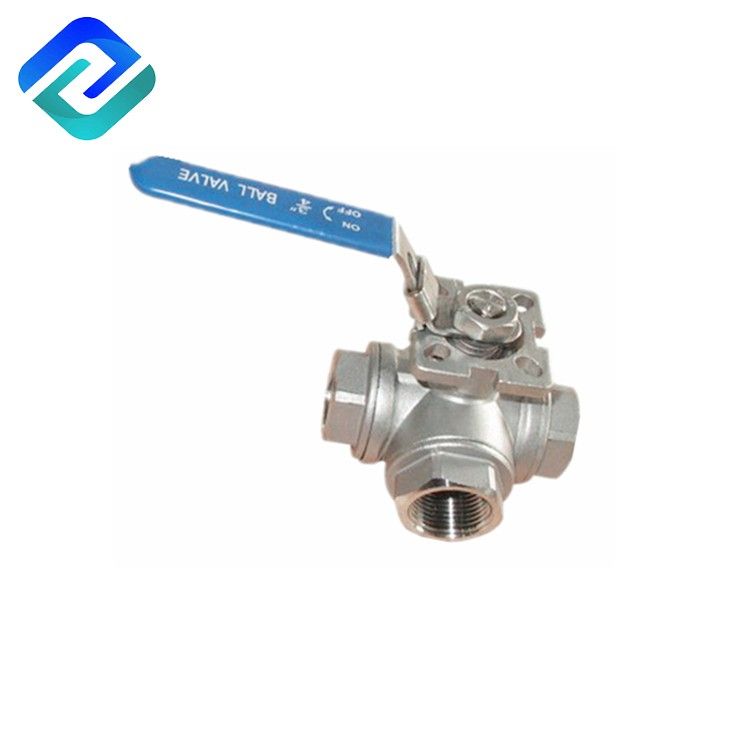

stainless steel 304 / 316 1000 psi 3 way ball valve

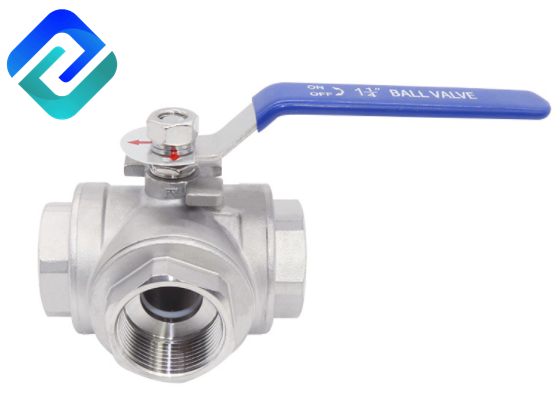

stainless steel 304 / 316 1000 psi 3 way ball valve

1. Material: CF8/CF8M

2. Body material: Stainless steel CF8, CF8M

3. Medium:Water Oil GasWOG

4. Structure:Ball

5. Connection:Thread End

6. Pressure Rating:1000PSIPN63

7. Working Temperature: -25~+180

8. Power: Manual

9. Port Size: 1/4"-4"


Products Description

stainless steel 304 / 316 1000 psi 3 way ball valve



SS three way ball valve structure features:

1 The SS three way ball valve seat can be designed into four floating balls and fixed ball, the flow is stable, and the seal is reliable;

2 The structural design is side-mounted and top-mounted, two-way sealing design, flow switching, no splitting;

3 Anti-flying valve stem design;

4 Antistatic design;

5 Two position (opening and closing position) lock design.



SS three way ball valve, mainly L-type SS three way ball valve and T-type SS three way ball valve, L-type SS three way ball valve, mainly for distribution, the principle is "one in one out", one leading to B or A, leading to C That is, only two orthogonal pipes can be connected to each other.

The T-type SS three way ball valve is divided into two types: confluence type and split type. The T-type SS three way ball valve structure is more complicated. The T-type SS three way ball valve has four valve seats, and the L-type SS three way ball valve is a double seat valve.

 Confluent T-type SS three way ball valve are two-in-one. This configuration is generally suitable for operating conditions mixed in two different media. For example, if the inlet pressure is different or less than the outlet pressure, the SS three way ball valve needs to be installed before the check valve. The split T-type SS three way ball valve is one in and two out. This structure is the most commonly used three types of valves, and it is used more. Therefore, manufacturers of SS three way ball valve will have more inventory.

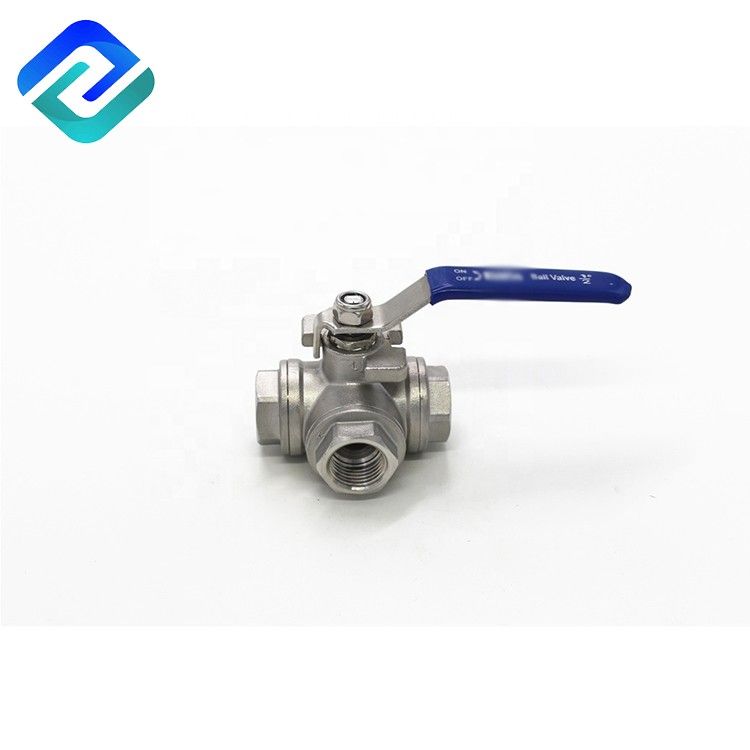

stainless steel 304 / 316 1000 psi 3 way ball valve

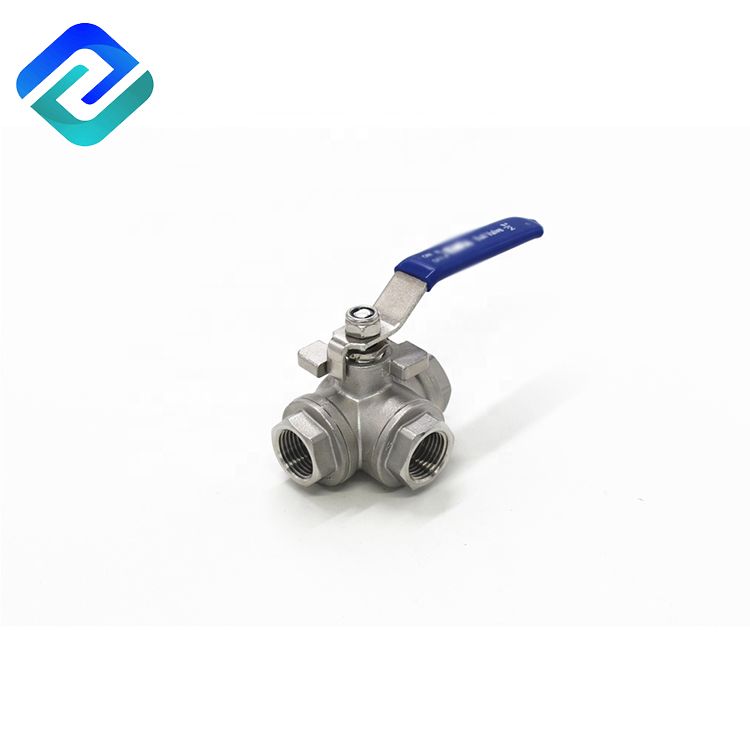

stainless steel 304 / 316 1000 psi 3 way ball valve
