Products Description
Product Overview:

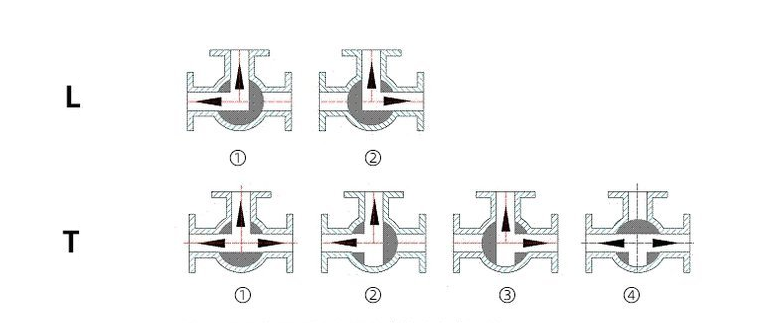

Technical specification: Q14F-16T(L type) Q15F-16T(T type)
Nominal pressure: 1.6mpa
Nominal diameter: DN15 ~ 50mm
Working medium: water, non-corrosive liquid, saturated steam
Operating temperature: -20℃≤ T ≤100℃
Cylindrical pipe threads conform to ISO228 standard
| DN | SIZE | L | H | D | B |
| 15 | 1/2 | 60.5 | 46 | 95 | 9 |
| 20 | 3/4 | 69 | 51 | 110 | 12.5 |
| 25 | 1 | 81.7 | 56 | 110 | 17 |
| 32 | 11/4 | 97 | 64 | 140 | 23 |
| 40 | 21/2 | 103 | 68 | 140 | 28 |
| 50 | 2 | 121 | 81.5 | 160 | 36 |
Q:can I get the quotation?
A:We usually quote within 12 hours after we get your inquiry.If you are very urgent to get the price,pls call us or tell us in
your email so that we will regard your inquiry priority.
Q: Could I get samples?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Can you do the design for us?
A:We have a professional team having rich experience in manufacturing.We could supply customized size,grade of material,and the coating.We also could supply the package according to your request.
Q.How are orders packed and shipped ?
A: For custom order, we can design full-color custom packaging to match your brand, if requires. Most shipments include boxes packed inside an outer carton and placed on a wooden pallet.
