Check valves are crucial components in fluid systems, preventing reverse flow and ensuring unidirectional flow control. Choosing the right check valve is essential for maintaining system efficiency, reliability, and safety. Here are key factors to consider when selecting a check valve:
Identify the specific application and the type of fluid the check valve will be handling. Consider factors such as fluid type, temperature, pressure, and compatibility with corrosive or abrasive substances. Select a check valve constructed from materials suitable for the intended application, such as stainless steel, brass, PVC, or various alloys.

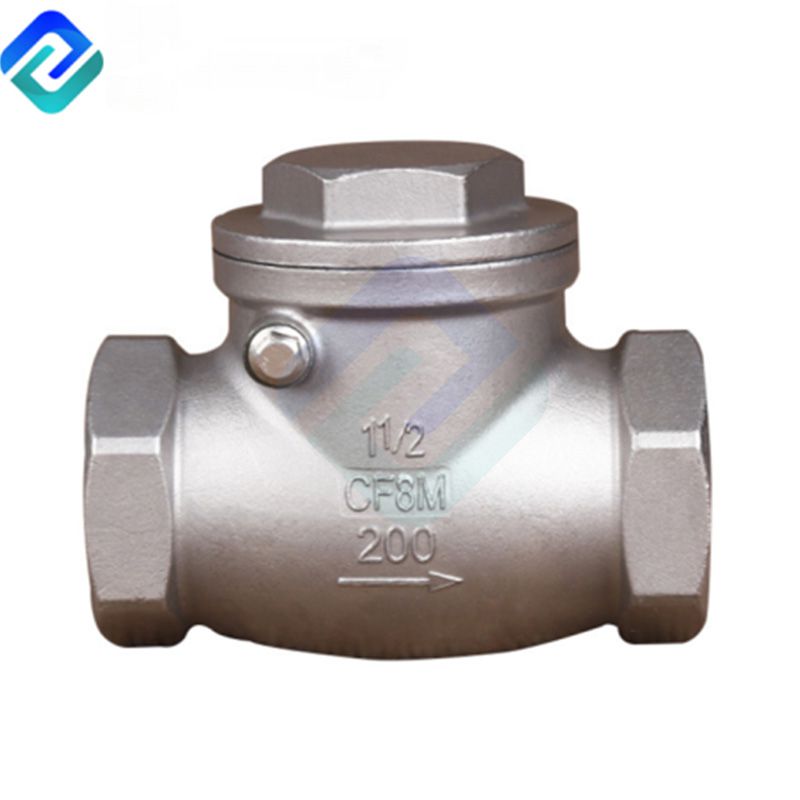

Check valves are available in various types, including swing check valves, lift check valves, and ball check valves. Each type offers different characteristics and advantages. For example, swing check valves provide low resistance and are suitable for horizontal flow applications, while lift check valves offer tight sealing and are ideal for vertical flow applications.
Choose a check valve with the appropriate size and flow capacity to match the requirements of your system. Consider factors such as pipe diameter, flow rate, and pressure drop when selecting the valve size. Ensure that the check valve's Cv (flow coefficient) value meets or exceeds the flow rate requirements of your application.
Consider the operating conditions of your system, including pressure, temperature, and flow dynamics. Select a check valve with the appropriate pressure and temperature ratings to ensure reliable performance under the expected operating conditions. Additionally, take into account any potential water hammer or surge pressures that may occur during system operation.
Check valves have specific installation orientations, such as horizontal, vertical, or diagonal. Choose a check valve that is designed for the intended installation orientation of your system to ensure proper operation and prevent issues such as fluttering or chatter.
Consider the ease of maintenance and serviceability when selecting a check valve. Look for valves with features such as easy access to internals, replaceable components, and minimal downtime for maintenance tasks. Choose reputable brands known for quality construction and reliable performance.
Here are some common questions people have about choosing a check valve:
A: Yes, certain types of check valves, such as swing check valves, are suitable for both horizontal and vertical flow applications. However, it's essential to verify the valve's orientation compatibility and installation guidelines to ensure proper operation.
A: Swing check valves have a hinged disc that swings open to allow flow in one direction and closes to prevent reverse flow. Lift check valves use a vertically moving disc that lifts to allow flow and drops to prevent backflow. The choice between the two depends on factors such as flow dynamics and space constraints.
A: Check valves should be inspected regularly as part of routine maintenance to ensure proper functioning and detect any signs of wear or damage. Depending on the application and operating conditions, check valves may need to be replaced periodically to maintain system efficiency and reliability.
By considering these factors and addressing common questions, you can confidently select the right check valve for your fluid system, ensuring efficient flow control and reliable performance.
