How to Choose a 3-Way Valve?

Feb. 15, 2024

Choosing the right 3-way valve is essential for efficient fluid control in various industrial, commercial, and residential applications. Whether for diverting, mixing, or shutting off flow, selecting the appropriate 3-way valve involves considering several key factors to ensure optimal performance and compatibility with your system.

Factors to Consider When Choosing a 3-Way Valve

Here are some crucial aspects to keep in mind:

1. Valve Type

There are different types of 3-way valves, including ball valves, butterfly valves, and plug valves. Each type offers unique characteristics and benefits. Ball valves are suitable for tight shut-off applications, while butterfly valves provide excellent flow control and low-pressure drop. Plug valves are ideal for handling corrosive fluids and slurries.

2. Valve Material

Consider the material construction of the valve, as it determines its compatibility with the fluid being conveyed and its resistance to corrosion, abrasion, and temperature extremes. Common materials include stainless steel, brass, PVC, and various alloys.

3. Pressure and Temperature Ratings

Ensure that the 3-way valve is rated for the operating pressure and temperature of your system to prevent potential leaks, damage, or failure. Check the manufacturer's specifications for maximum pressure and temperature ratings.

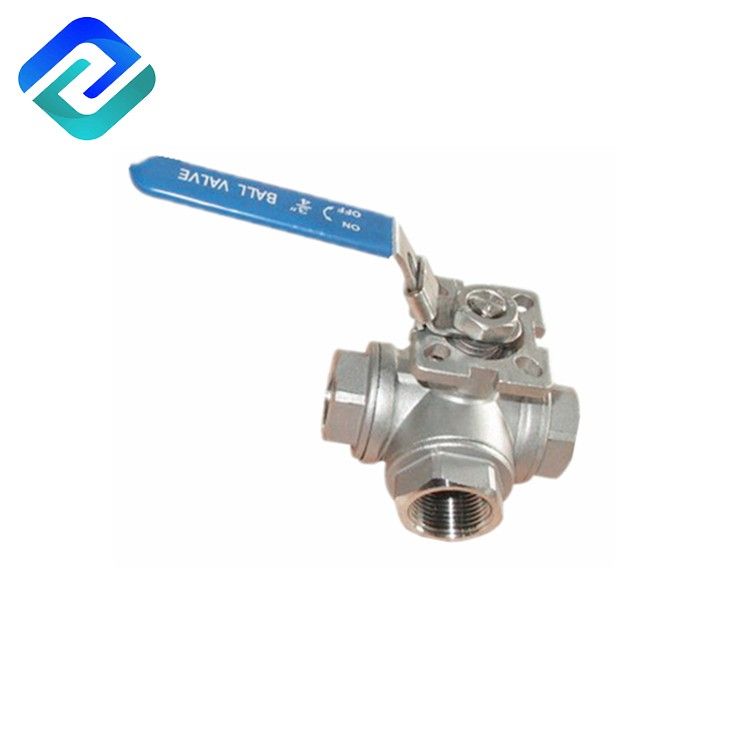

 3-Way Valve

 3-Way Valve

4. Flow Rate and Cv Value

Determine the required flow rate of your system and select a 3-way valve with an appropriate Cv (flow coefficient) value that matches or exceeds the flow requirements. The Cv value indicates the flow capacity of the valve at a given pressure drop.

5. Actuation Method

Consider whether you need manual, pneumatic, electric, or hydraulic actuation for the 3-way valve, depending on your application requirements and automation preferences. Each actuation method offers distinct advantages in terms of control, reliability, and response time.

6. Port Configuration

Determine the desired port configuration of the 3-way valve, such as L-port or T-port, based on the flow path required for your application. L-port valves divert flow between two ports, while T-port valves mix or distribute flow between three ports.

Questions and Answers

Here are some common questions people have about choosing a 3-way valve:

Q: Can a 3-way valve be used for both diverting and mixing applications?

A: Yes, depending on its port configuration and design, a 3-way valve can be used for diverting flow between two ports or mixing flow between three ports. Select the appropriate valve type and port configuration based on your specific application requirements.

Q: What are the advantages of electrically actuated 3-way valves?

A: Electrically actuated 3-way valves offer precise control, remote operation, and automation capabilities, making them suitable for applications requiring frequent adjustments, precise positioning, or integration with control systems.

Q: How do I size a 3-way valve for my system?

A: Size the 3-way valve based on factors such as flow rate, pressure drop, fluid characteristics, and system piping. Consult with the manufacturer or a qualified engineer to ensure proper sizing and selection for optimal performance.

By considering these factors and addressing common questions, you can confidently choose the right 3-way valve for your specific fluid control needs, ensuring efficient operation and reliable performance.
