A case of making a special shape stainless steel part

A case of making a special shape stainless steel part

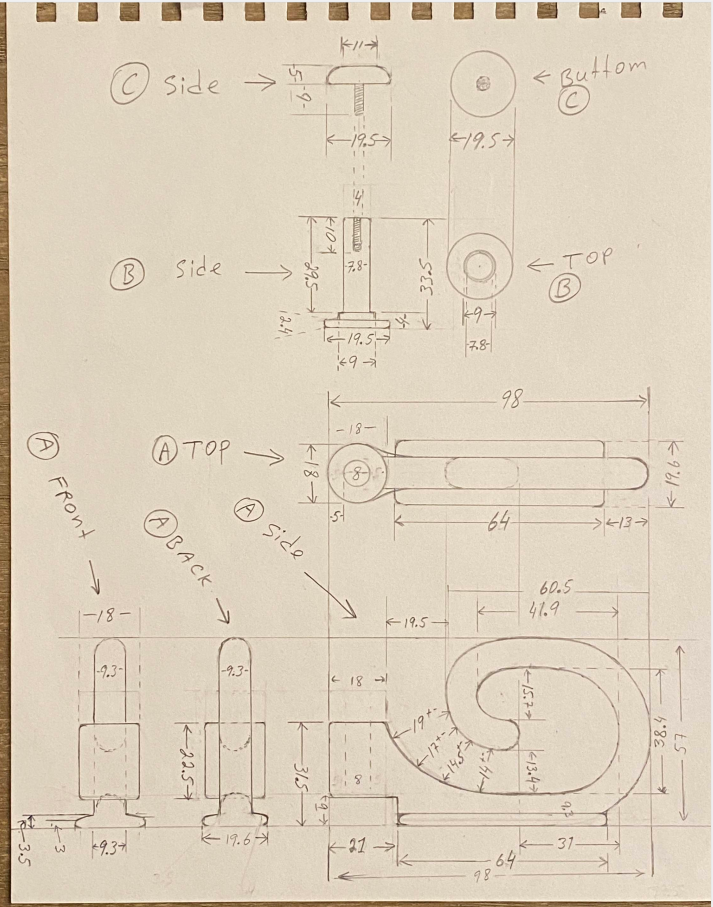

At the beginning, I just received a message from Alibaba which one US customer told me he need  to make metal or stainless steel custom fitting for L rail for production. Then I told him we need to read his drawings to see if we make it or not? Then this customer sent us his hand drawings as below:

After our technician checked for this drawings, we go on to confirm some information about the thread type and the force bearing condition in practical situation.

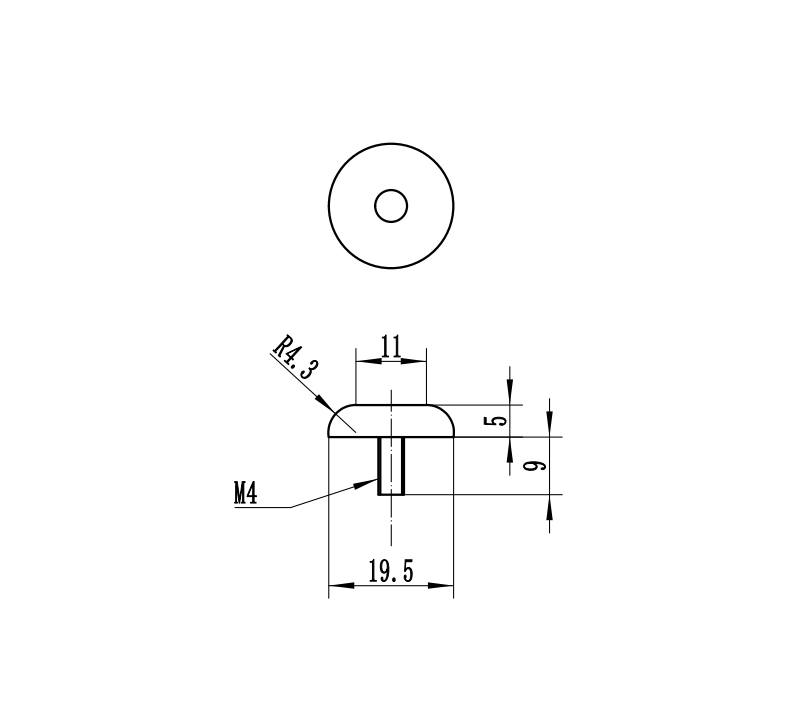

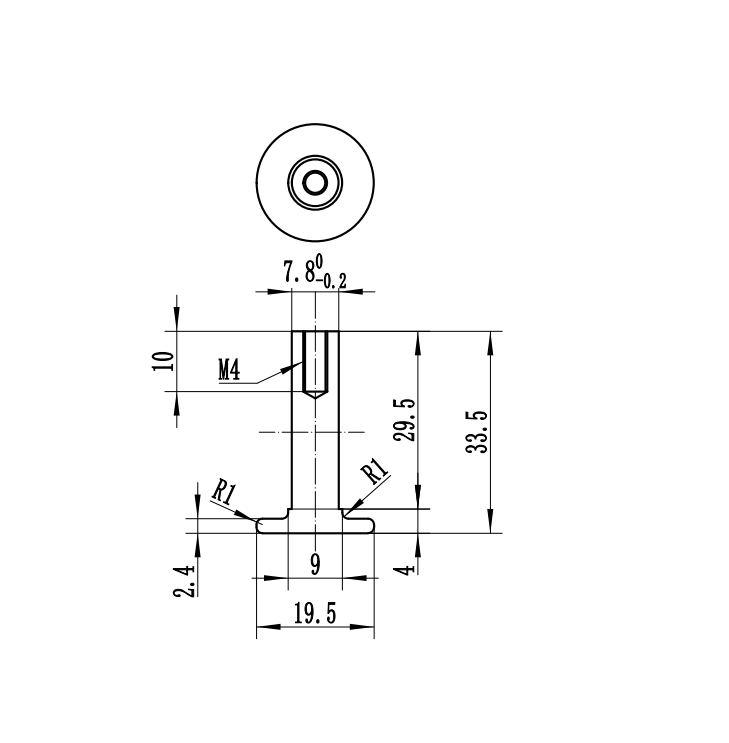

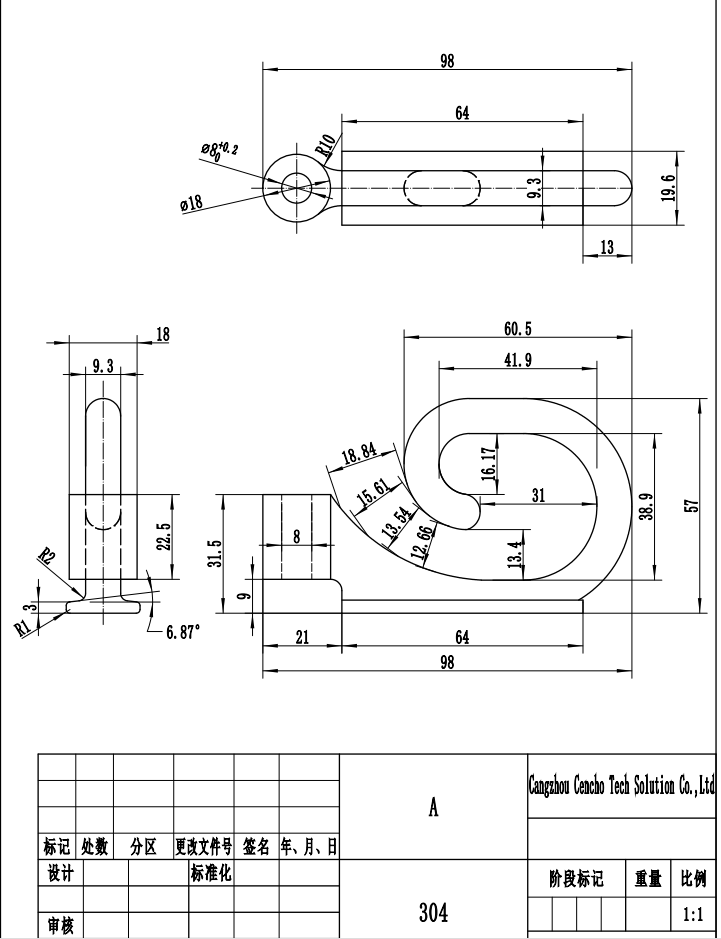

By everything we got, our technician drawings three CAD drawings to do the final confirmation.

Later CAD drawings were got approved, so that we can make a exact quote for customers.
