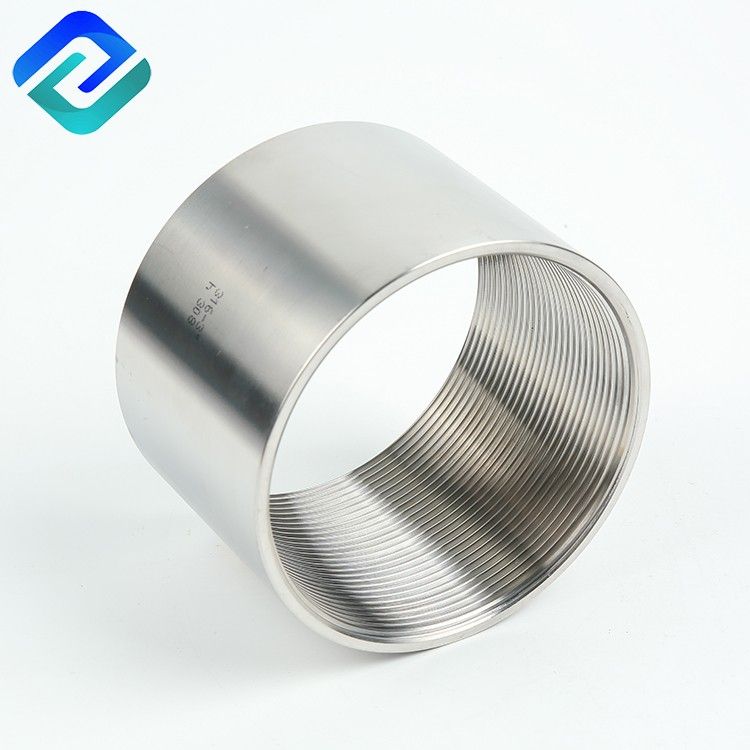

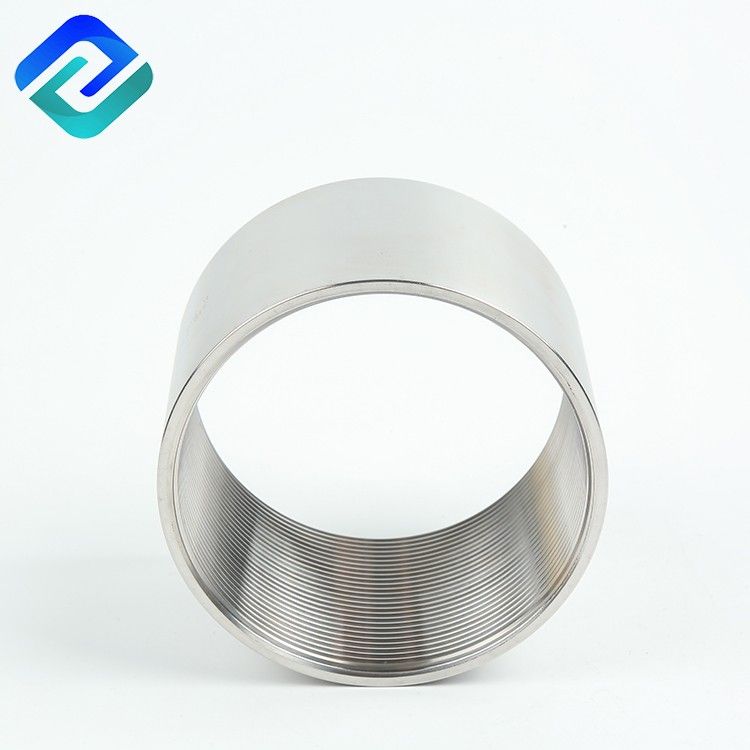

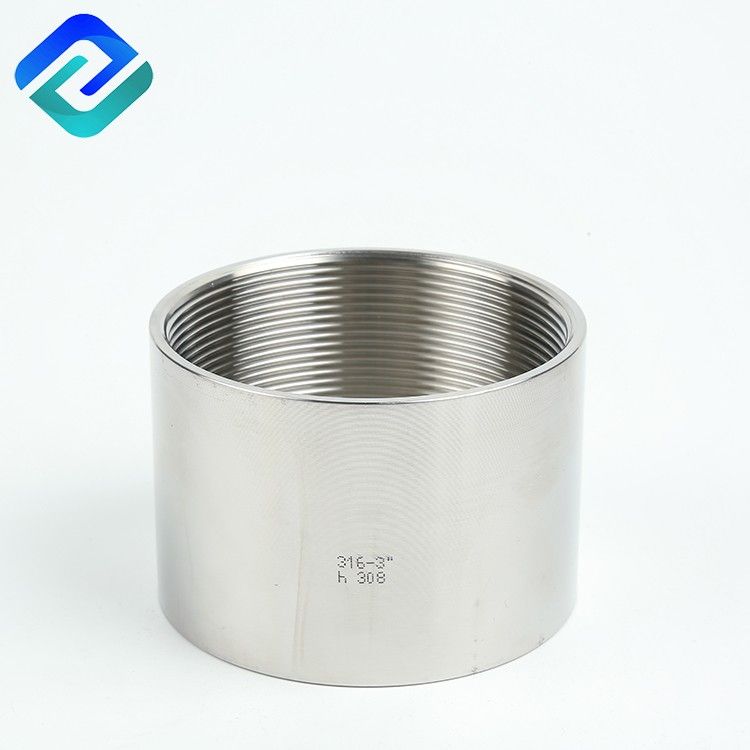

All kinds of stainless steel pipe transition fittings food grade sleeve socket
Food-grade stainless steel pipe sleeve sockets are specialized fittings designed to connect sections of piping in food and beverage processing applications. These fittings must adhere to stringent hygiene and safety standards to ensure they do not contaminate the products they come into contact with.
Products Description
◆The thread end conforms to
ASME B1.20.KNPT
DIN 2999&BS21
ISO 228/1 & ISO 7/1
◆Dimension conforms to
ISO 4144fSP114
EN-10241JIS
◆150LBS
◆Material conforms to
ASTM A351-CF8M/1.4408
ASTM A351-CF8/1.4401
ASTM A216-WCB
AISI 304,304L,316,316L,301,430ETC
◆MADE FROM CASTING, WELD
PIPE OR SEAMLESS PIPE
Cencho is one of the professional manufacturers of stainless steel products with our own casting foundry.
We have specialized in stainless steel pipe fittings for many years, especially for thread pipe fittings(ISO4144 Standard, MS SP114 Standard, High pressure 3000PSI), Camlock Coupling, Tube Fittings, Hydraulic Fittings, etc.
| Property | Specification |
| Material Composition | Stainless Steel (Grades 304, 316, etc.) |
| Outer Diameter (OD) | Customizable based on pipe size |
| Inner Diameter (ID) | Customizable based on pipe size |
| Length | Varies (standard lengths available) |
| Wall Thickness | Varies (based on application requirements) |
| Connection Type | Socket Weld, Threaded, or Slip-On |
| Pressure Rating | Varies (typically up to 1500 psi or higher) |
| Temperature Range | Up to 800°C (1472°F) for high-temp grades |
| Corrosion Resistance | Excellent, especially in corrosive environments |
| Surface Finish | Polished, pickled, passivated |
| Standards | ASTM A312, A403, A182, ASME B16.9, B16.11 |
| Applications | Plumbing, HVAC, petrochemical, food and beverage, pharmaceuticals, water treatment |
● Used to connect sections of pipe in processing plants where hygiene and cleanliness are paramount.
● Ensures safe transport of liquids and ingredients without contamination.
● Essential in dairy processing for transporting milk, cream, and other dairy products.
● Smooth, easy-to-clean surfaces prevent bacterial growth and product contamination.
● Used in breweries and distilleries to transport ingredients and finished products.
● Stainless steel’s resistance to corrosion from acidic and alcoholic environments makes it ideal for these applications.
● Suitable for use in pipelines that transport pharmaceutical products, where cleanliness and corrosion resistance are critical.
● Ensures compliance with stringent hygiene standards required in pharmaceutical manufacturing.
● Utilized in pipelines for water treatment and desalination plants due to their durability and resistance to corrosion.
Stainless steel, especially grades 304 and 316, offers excellent resistance to corrosion and rust, making these sockets suitable for use in harsh environments.
High tensile strength and durability, ensuring a long service life even under high pressure and temperature conditions.
Can withstand a wide range of temperatures, making them ideal for both hot and cold applications.
Stainless steel is easy to clean and maintain, making it ideal for applications in the food and beverage and pharmaceutical industries.
High strength-to-weight ratio, providing reliable performance without adding significant weight to the piping system.

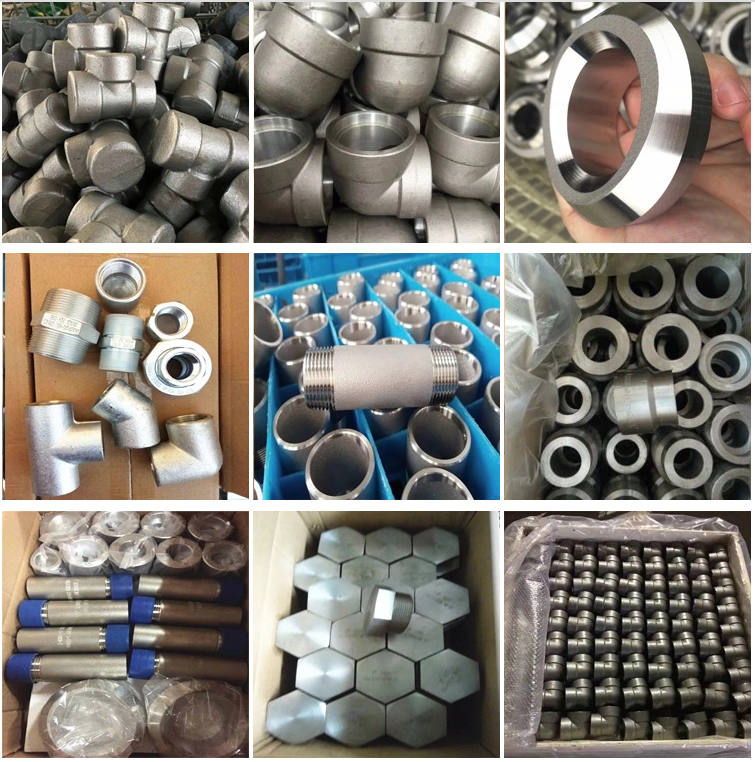

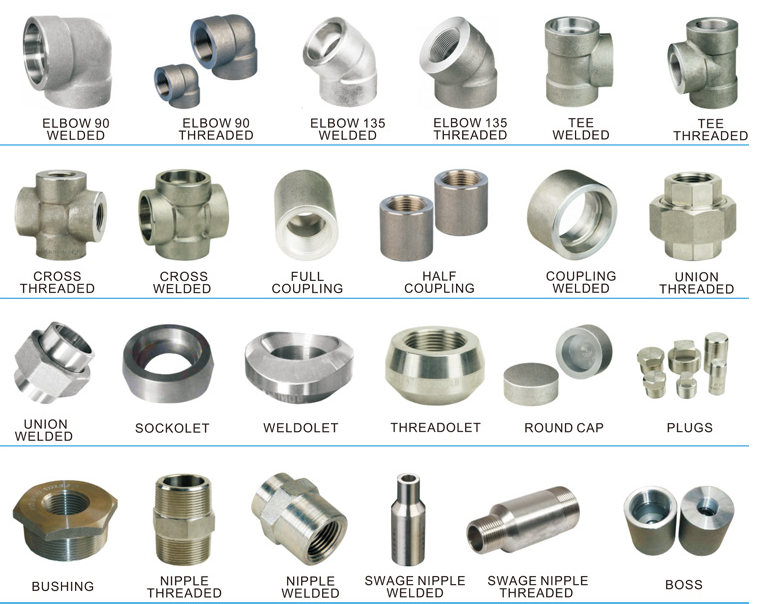

All kinds of stainless steel pipe fittings made
Darwings
