304/316 stainless steel investment cating pipe fittings female thread Union

UNION CONICAL F/F (CU-Z-F/F)

FEATURES

◆The thread end conform to

ASME B1.20.KNPT

DIN 2999&BS21

ISO 228/1 & ISO 7/1

◆Dimension conform to

ISO 4144fSP114

EN-10241JIS

◆150LBS

◆Material conform to

ASTM A351-CF8M/1.4408

ASTM A351-CF8/1.4401

ASTM A216-WCB

AISI 304,304L,316,316L,301,430ETC

Inquire Now Next Product

Products Description

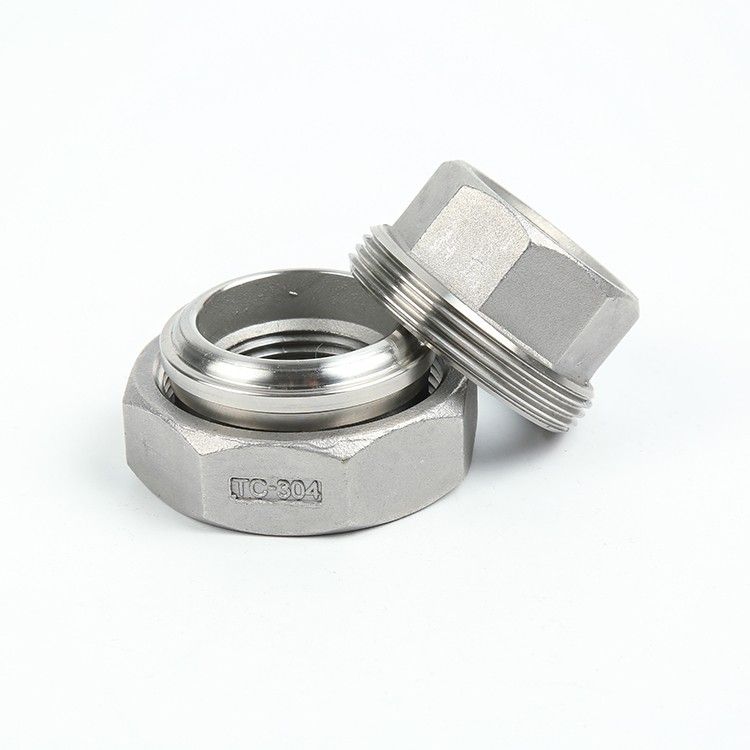

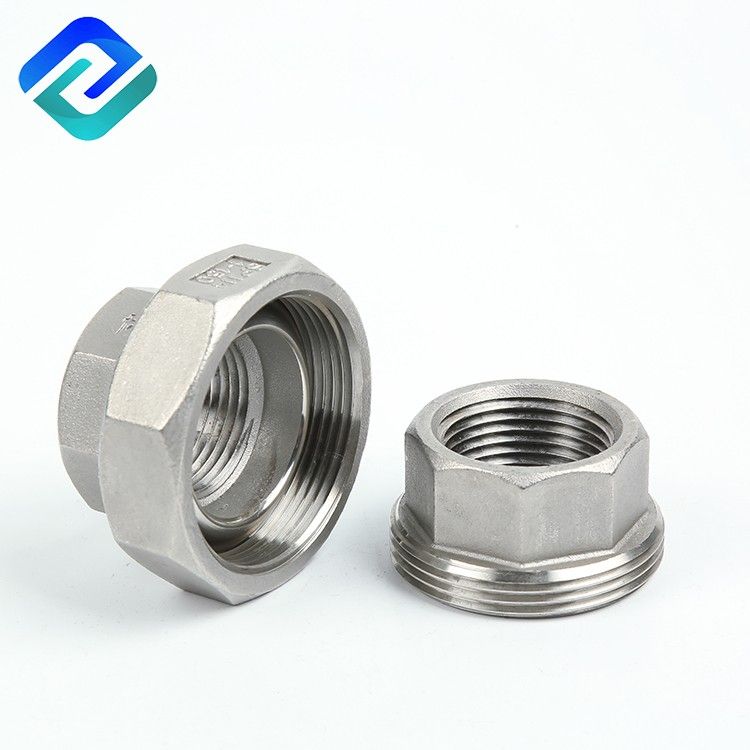

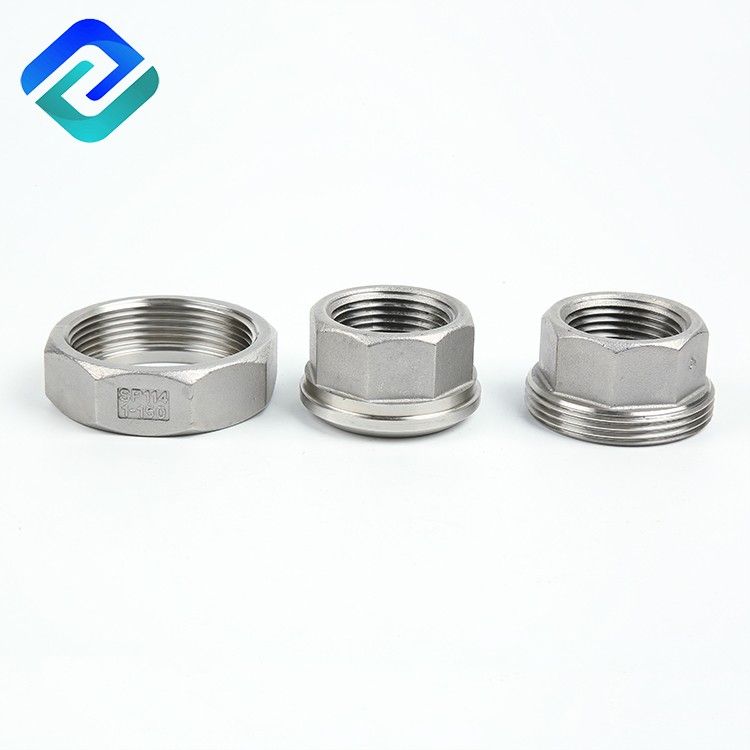

304/316 stainless steel investment cating pipe fittings female thread Union

This type of Union is stainless steel 304, size DN15 - DN50. Thread type is PT, and machining by CNC.
The special place is ------- it use one-progress CNC machining.
Our Union  maintain a perfect straightness.  So it is hot sale !

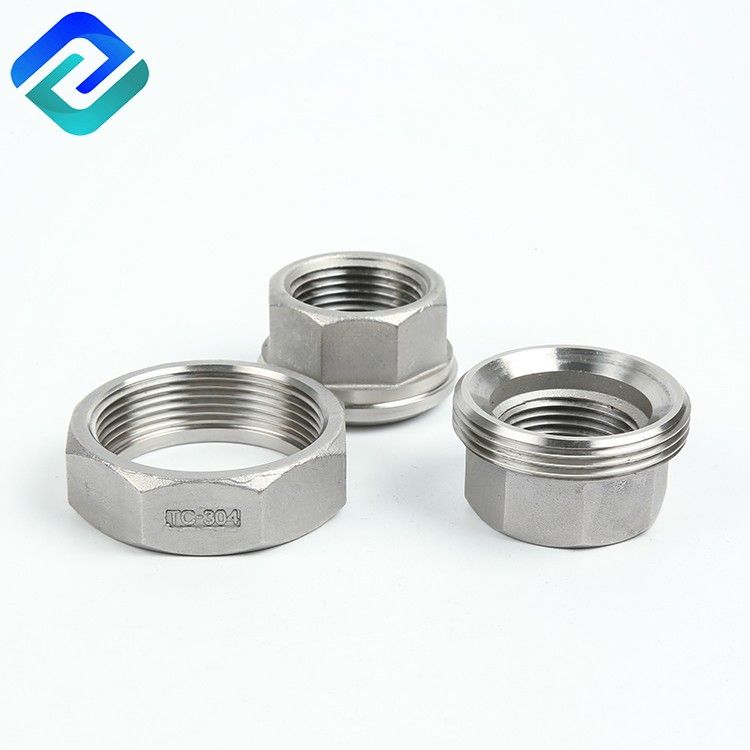

union ..jpg

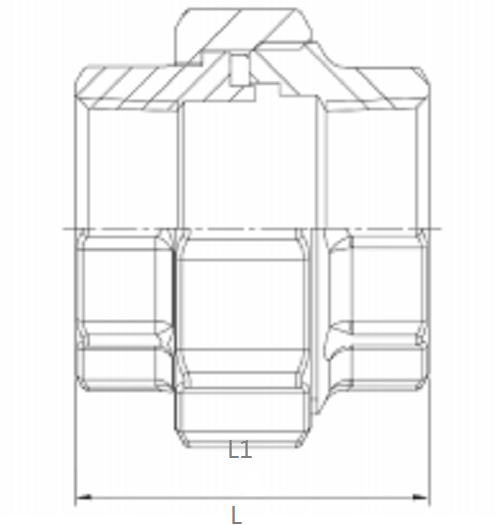

Drawings

Dimension table

STANDARD	SIZE	1/8	1/4	3/8	1/2	3/4	1	11/4	11/2	2	21/2	3	4
ISO4144	L1	13	13.5	15	16	17	20	22	24	27	29.5	31	34
ISO4144	L	30	33.5	36.5	39.5	42.5	50	54	58	65	75	83	110
SP-114	L1	13.5	13.5	14.5	15.5	16.5	18.5	21	23	25	27	29	32
SP-114	L	33	33	34	40	42	49	55	58	63	71	79	92
EN-10241	L1	13.5	13.5	15.5	17	19	20.5	23	26	28.5	28.5	30	34
EN-10241	L	29	37.5	38	42	50.4	48	59	65	69	80	88	109

Packing
