Thread End：ANSI B 2.1,BS21,ISO7/1
Pressure Rating：200PSI(PN16)
Working Temperature:-25℃+180℃
Material:CF8M,CF8,CF3M,WCB
Inspection Testing: API 598,EN 12266
Products Description

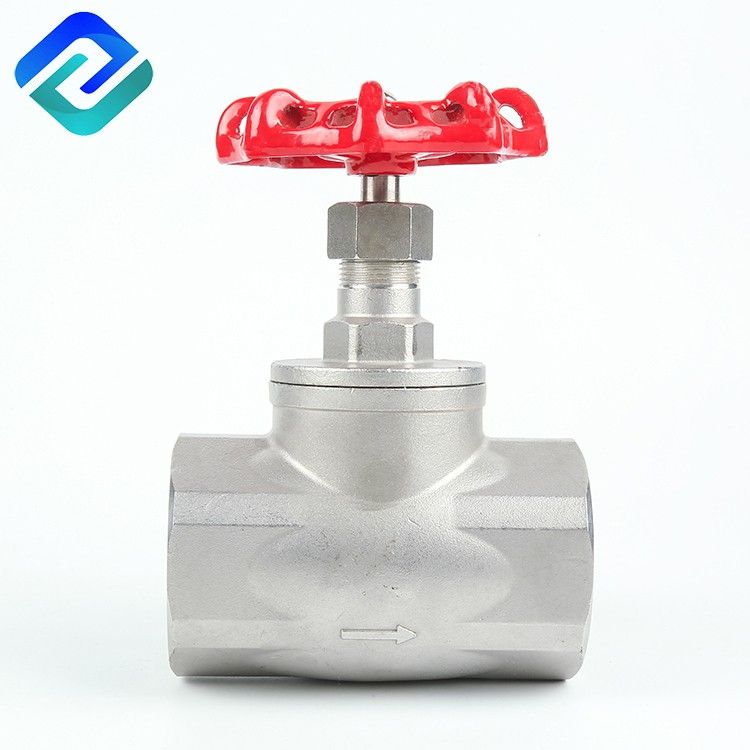

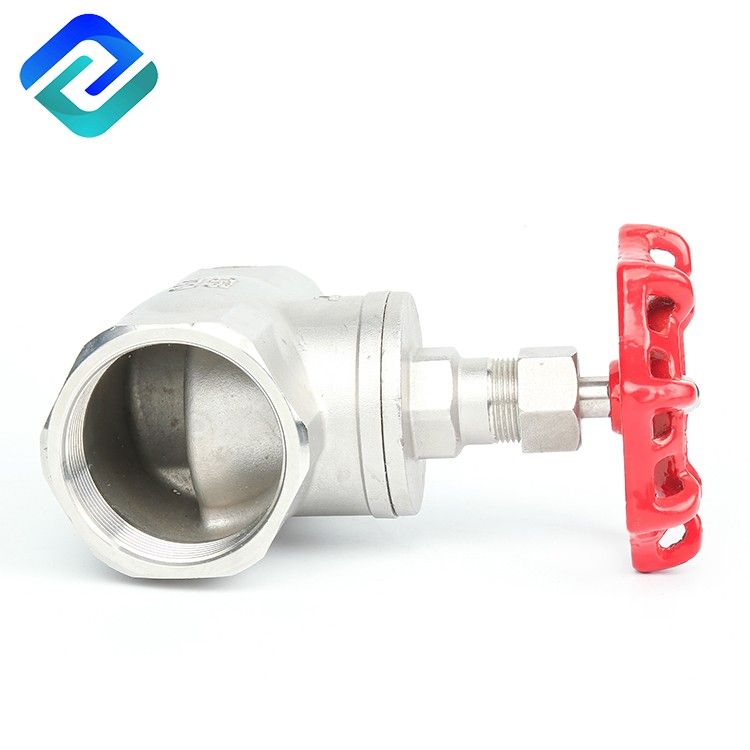

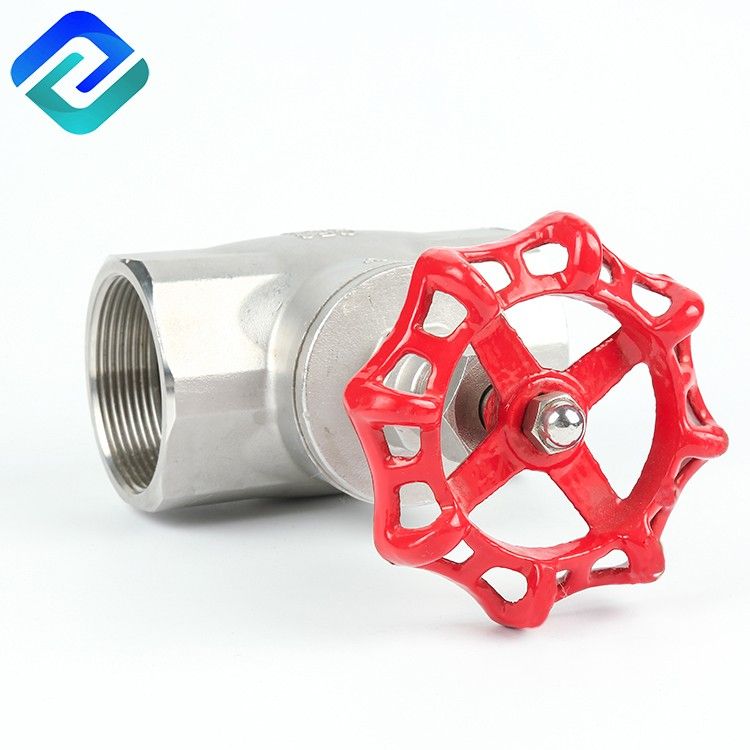

304/316 Stainless Steel Lost Wax Casting NPT/BSP Threaded Globe Valve Made In China
Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance.Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life.When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's.
1) Before the order can be confirmed finally,we would strictly check the material,color,dimension of the sample step by step.
2) We salesman ,also as a order follower,would trace every phase of production from the beginning.
3) We have a QC team ,every product would be checked by them before packed.
4) We would try our best to help clients solve problems when they occurred.

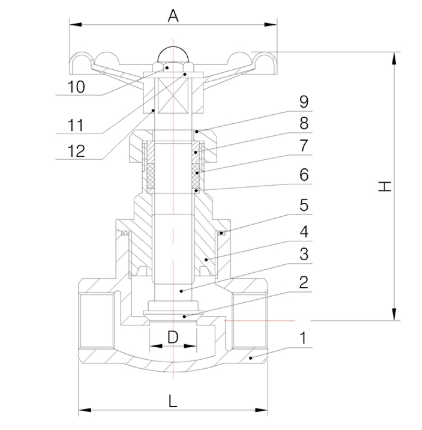

Drawing :
