  • Precision casting internal thread globe valve

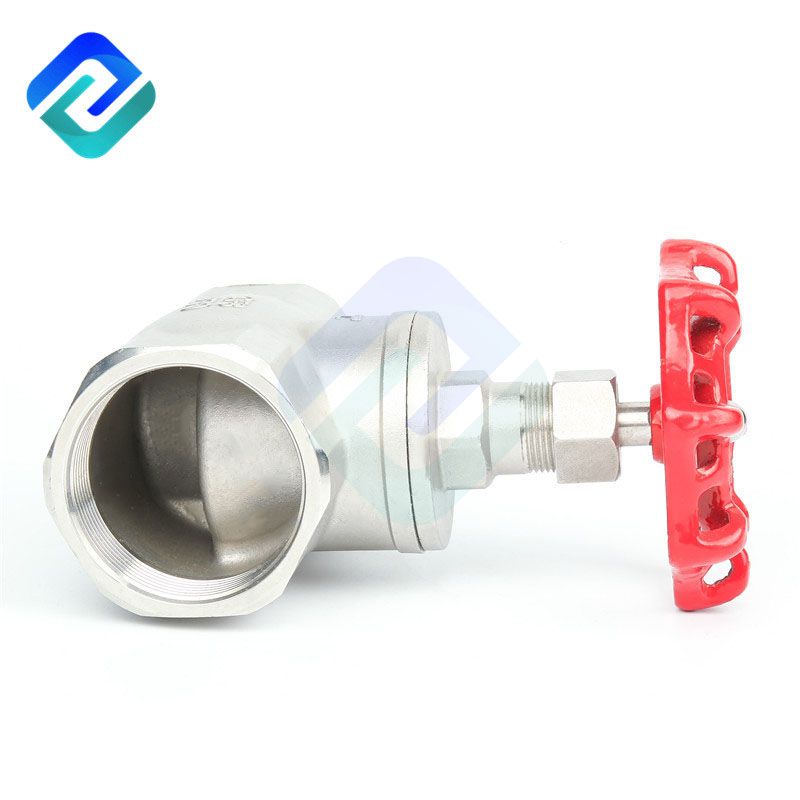

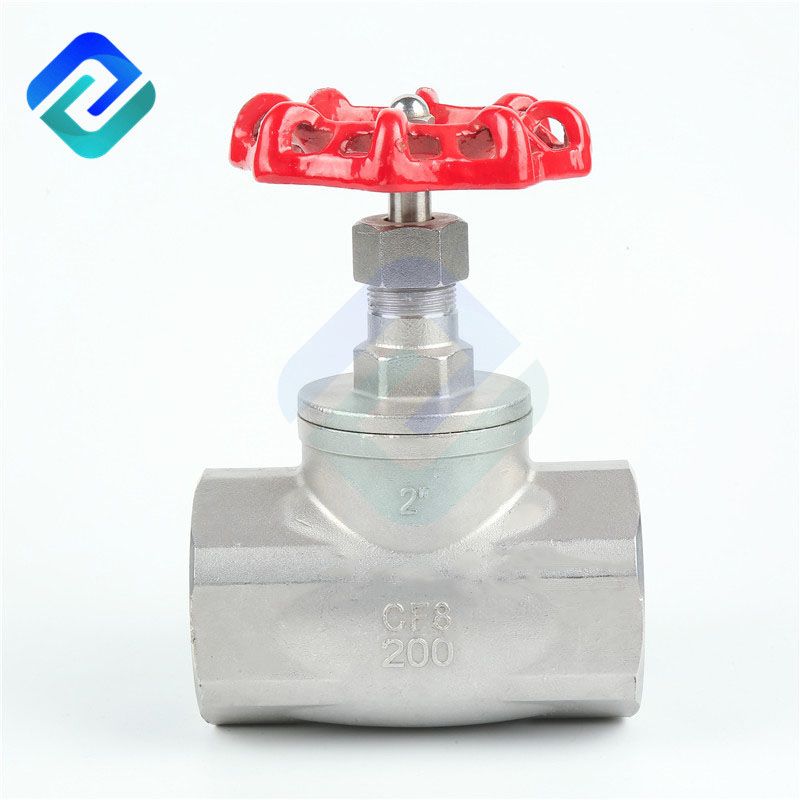

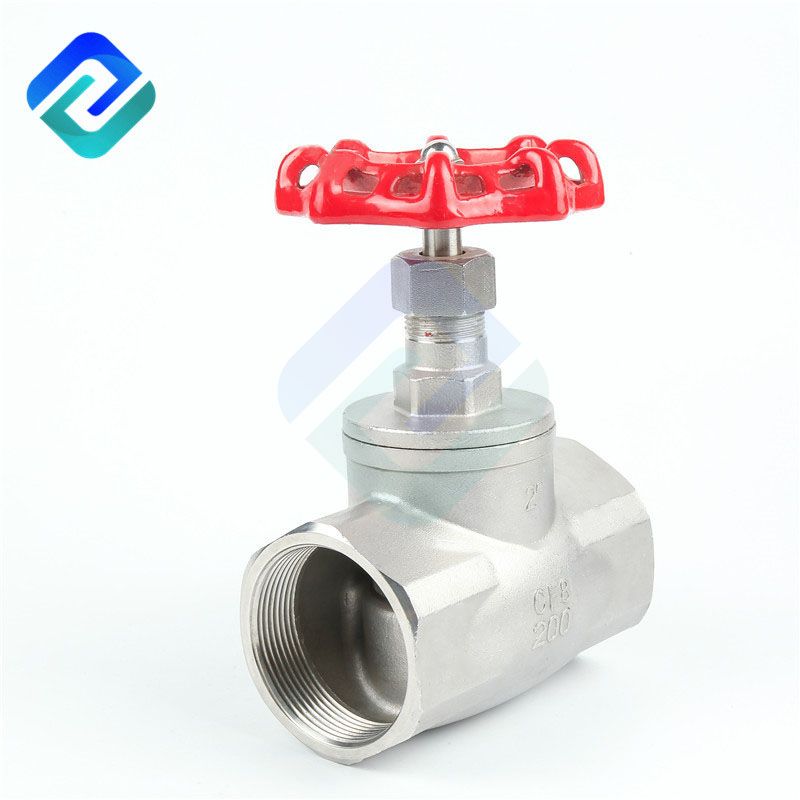

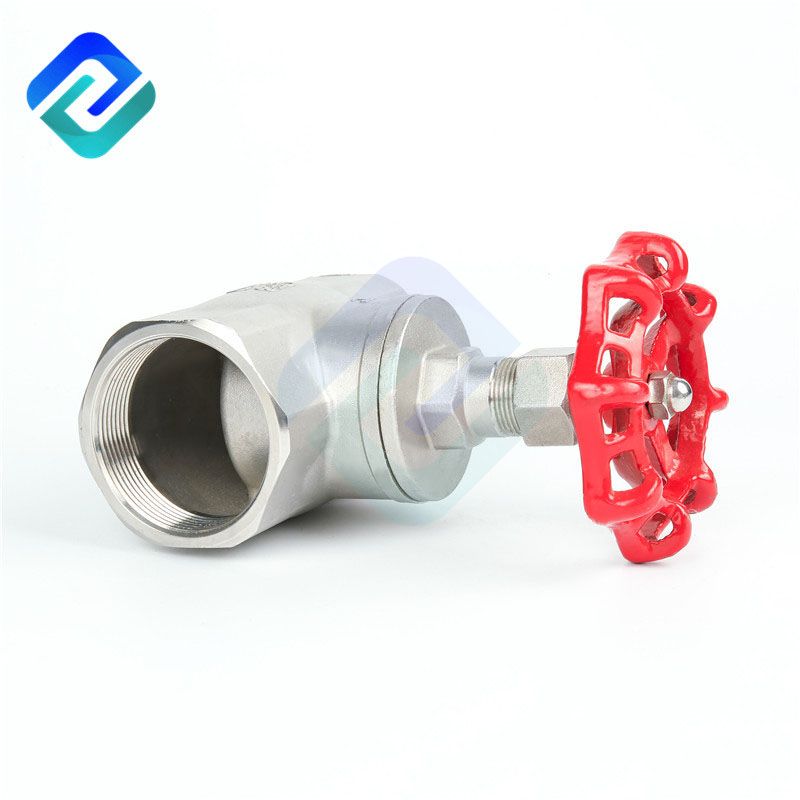

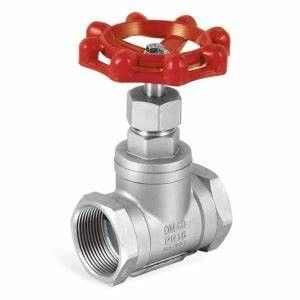

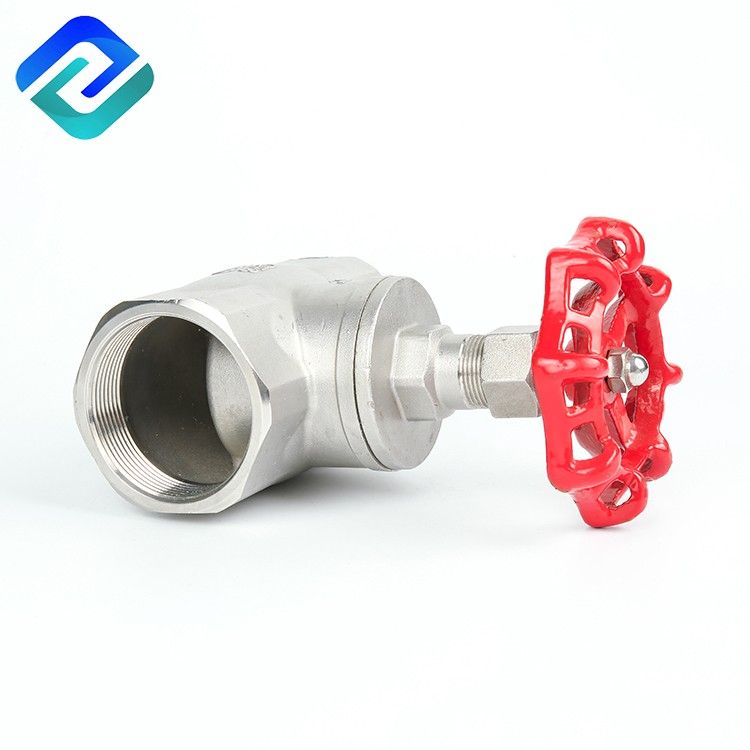

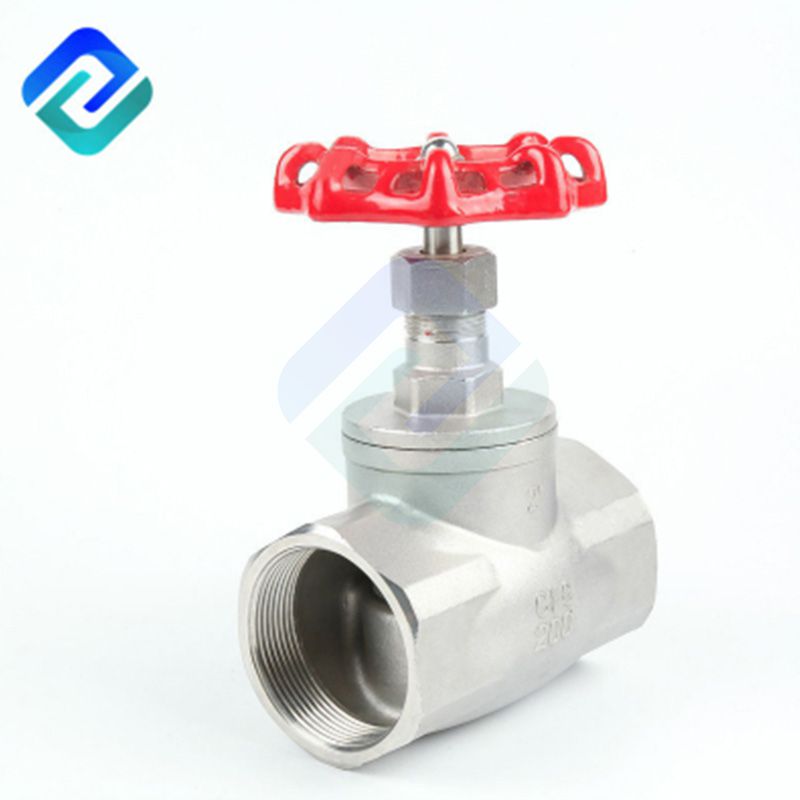

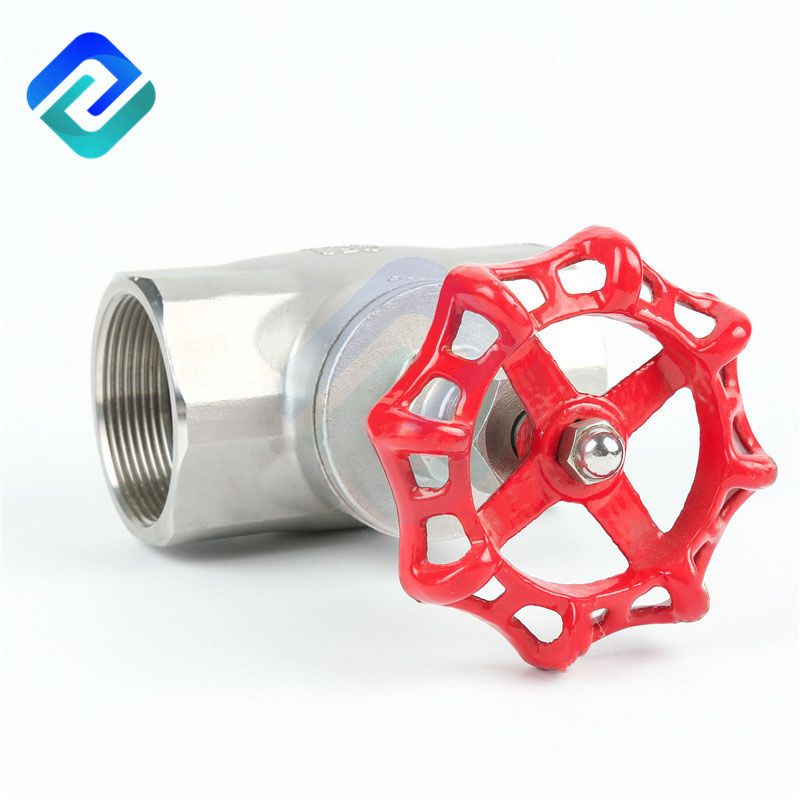

Precision casting internal thread globe valve

The opening and closing part of the gate valve is a gate. The movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and closed, and cannot be adjusted or throttled. The gate has two sealing surfaces.

Products Description

Precision casting internal thread globe valve

The opening and closing part of the precision casting internal thread globe valve is a gate. The movement direction of the internal thread globe valve is perpendicular to the direction of the fluid. The precision casting internal thread globe valve can only be fully opened and closed, and cannot be adjusted or throttled. The  internal thread globe valve has two sealing surfaces. The two sealing surfaces of the most commonly used mode  internal thread globe valve form a wedge shape. The wedge angle varies with the valve parameters, usually 50, and 2 ° 52 'when the medium temperature is not high. The  internal thread globe valve of the wedge internal thread globe valve can be made as a whole, called a rigid gate; it can also be made as a  internal thread globe valve that can produce a small amount of deformation to improve its manufacturability and make up for the deviation of the sealing surface angle during processing. The board is called an elastic shutter. The stainless steel  internal thread globe valve material is divided into 304 stainless steel gate valve, 316 stainless steel gate valve, 321 stainless steel gate valve. The representation method is: Z41H-16P.

Precision casting internal thread globe valve

Precision casting internal thread globe valve

Precision casting internal thread globe valve

Precision casting internal thread globe valve

Precision casting internal thread globe valve

Investment castings for body and cap

Thread End:ANSI B2.1,BS21,ISO7/1

Pressure Rating:200PSI(PN16)

Working Temperature: -25℃ ~ +180℃                                                                                                                                                                                               Material:CF8M,CF8,CF3M,WCB

Inspection Testing: API 598,EN 12266



Material List

ITEM

PART

MATERIAL

QTY

1

BODY

A216-WCB

A351-CF8

A351-CF8M

1

2

DISC

A216-WCB

A351-CF8

A351-CF8M

1

3

STEM

A216-WCB

A351-CF8

A351-CF8M

1

4

CAP

A216-WCB

A351-CF8

A351-CF8M

1

5

GASKET

PTFE

1

6

WASHER

304

1

7

STEM PACKING

304

1

8

RING

304

1

9

GLAND

304

1

10

WHEEL NUT

304

1

11

PLATE

304

1

12

HANDLE WHEEL

ALUMNUM ALLOY

1



Dimension Table

SIZE

D

L

H

A

KGS

DN6

1/4’’

10

55

79

65

0.35

DN10

3/8’’

12

55

79

65

0.35

DN15

1/2’’

15

67

79

65

0.38

DN20

3/4’’

20

75

91

77

0.50

DN25

1’’

25

85

106

77

0.67

DN32

1-1/4’’

32

101

125

97

1.15

DN40

1-1/2’’

40

115

136

97

1.45

DN50

2’’

50

136

155

97

2.15
