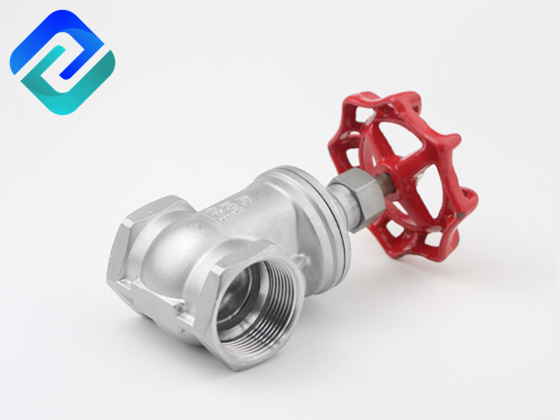

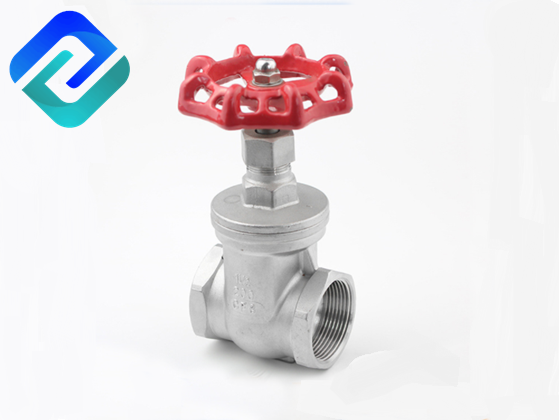

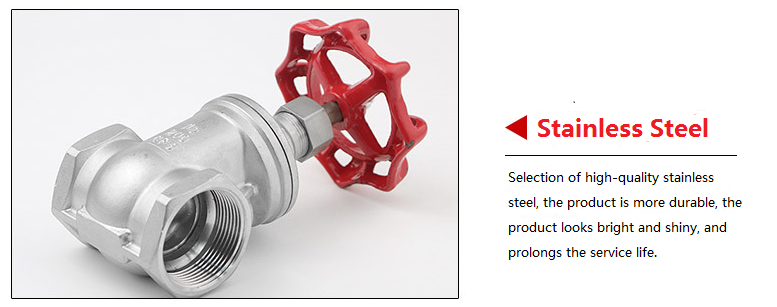

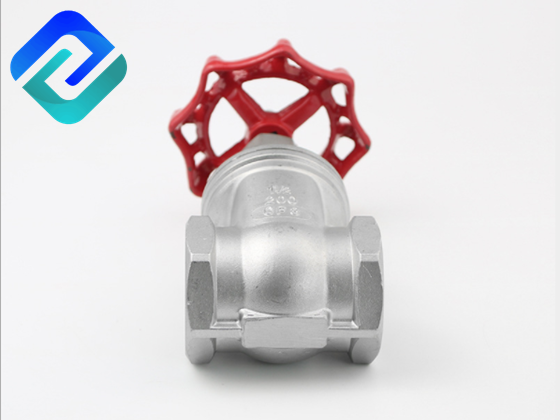

Thread Gate Valve
Thread End：ANSI B 2.1,BS21,ISO7/1
Pressure Rating：200PSI(PN16)
Working Temperature:-25℃+180℃
Material:CF8M,CF8,CF3M,WCB
Inspection Testing: API 598,EN 12266

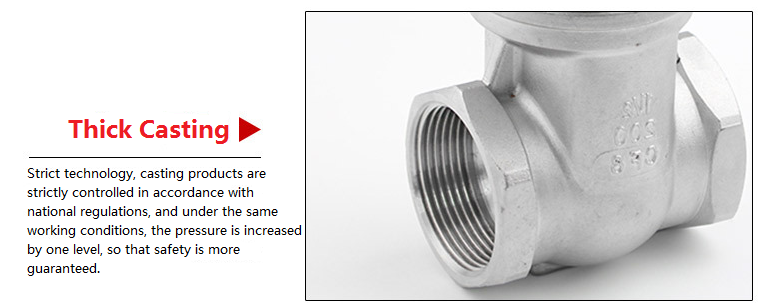

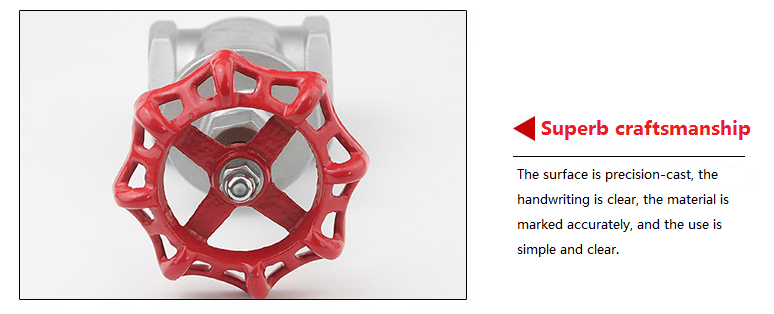

Products Description
Stainless Steel NPT BSPT Mannual Operate Thread Gate Valve

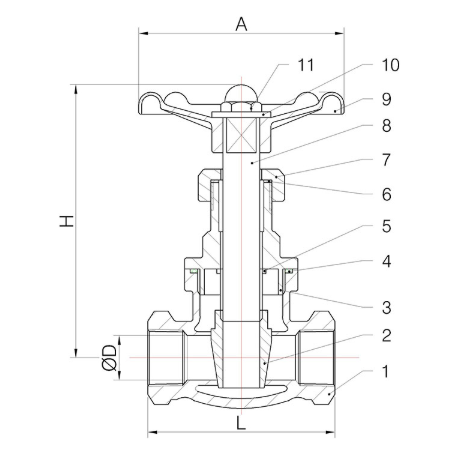

Drawing
A gate valve is generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions.
A gate valve consists of a valve body, seat and disc, a spindle, gland, and a wheel for operating the valve. The seat and the gate together perform the function of shutting off the flow of fluid. A typical gate valve is shown in figure below.
Dimensions Table
| SIZE | D | L | H | A | KGS |
DN 6 1/4" | 10 | 42 | 98 | 65 | 0.30 |
| DN 10 3/8" | 12 | 42 | 98 | 65 | 0.30 |
| DN 15 1/2" | 14 | 53 | 98 | 65 | 0.40 |
| DN 20 3/4" | 19 | 57 | 98 | 72 | 0.52 |
| DN 25 1" | 24 | 64 | 105 | 77 | 0.69 |
| DN 32 1-1/4" | 30 | 72 | 125 | 97 | 1.07 |
| DN 40 1-1/2" | 38 | 76 | 137 | 97 | 1.36 |
| DN50 2” | 47 | 88 | 155 | 107 | 2.08 |
