Investment Casting for body and Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating:1000PSI (PN63)
Thread End:ANSI B2.1,BS21,ISO7/1
Inspection Testing:API 598,EN 12266

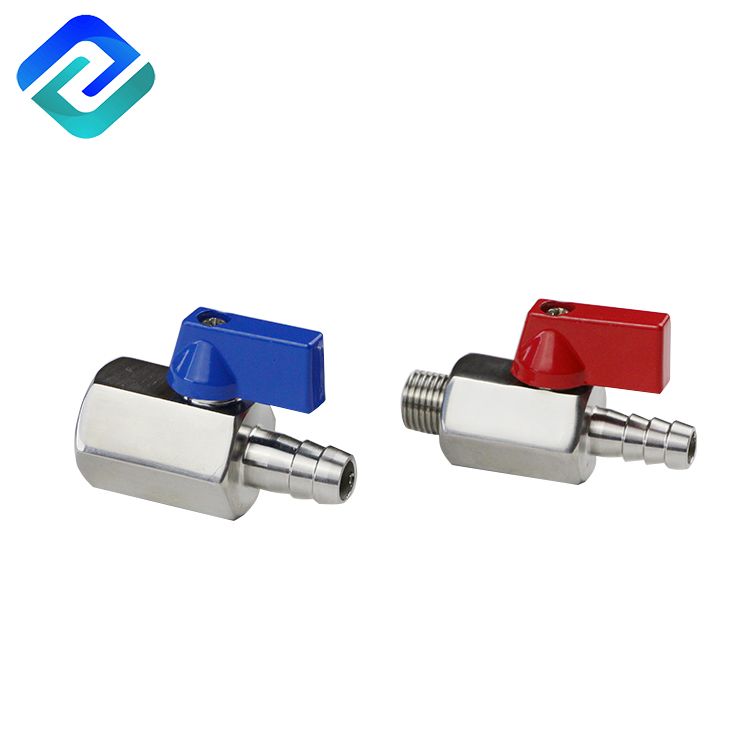

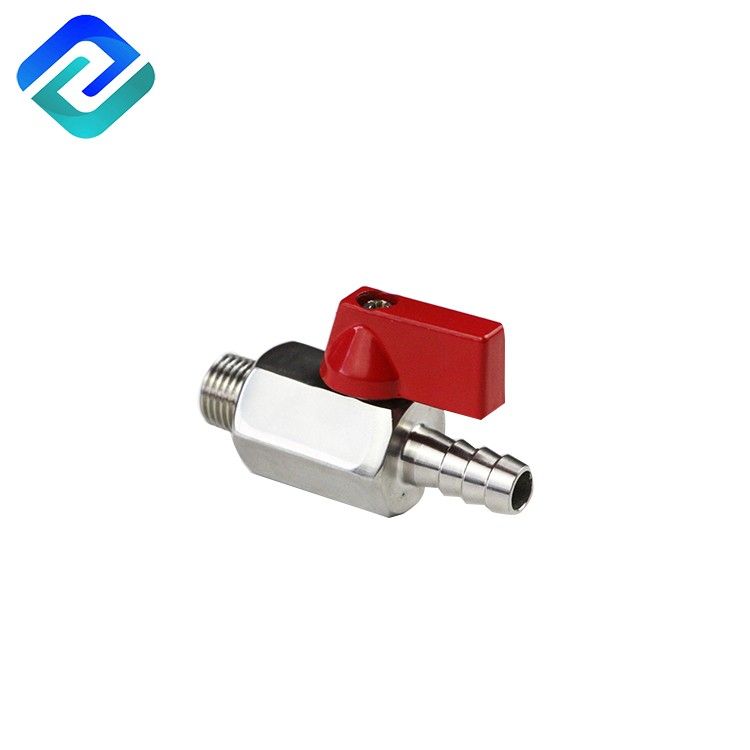

Durable in use 304/316 stainless steel investment casting hose bar mini ball valve
◆Size: 1/8"-1"(DN6-DN25)-Reduced Port.
◆ Max Pressure: PN63
◆ End connection: G Thread, BSPT/BSP/NPT Etc.
◆ Investment Casting Body
◆ Blow-out proof stem
◆ Operation: Manual
◆ Suitable medium: WOG( Water, Oil, Gas) and some corrosive liquid.
◆ Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
◆ 100% 0.8Mpa air pressure testing to make sure each one meets your requirements.
◆ OEM is acceptable and manufactures special requirements according to your drawings.
