  • Superior quality 1000wog stainless steel investment casting mini ball valve

Superior quality 1000wog stainless steel investment casting mini ball valve

Investment Casting for body and Cap

Internal Entry Blow-Out Proof Stem

Pressure Rating:1000PSI (PN63)

Thread End:ANSI B2.1,BS21,ISO7/1

Working Temperature:-25℃-180℃

Material:CF8M,CF8,CF3M,WCB

Inspection Testing:API 598,EN 12266

Products Description

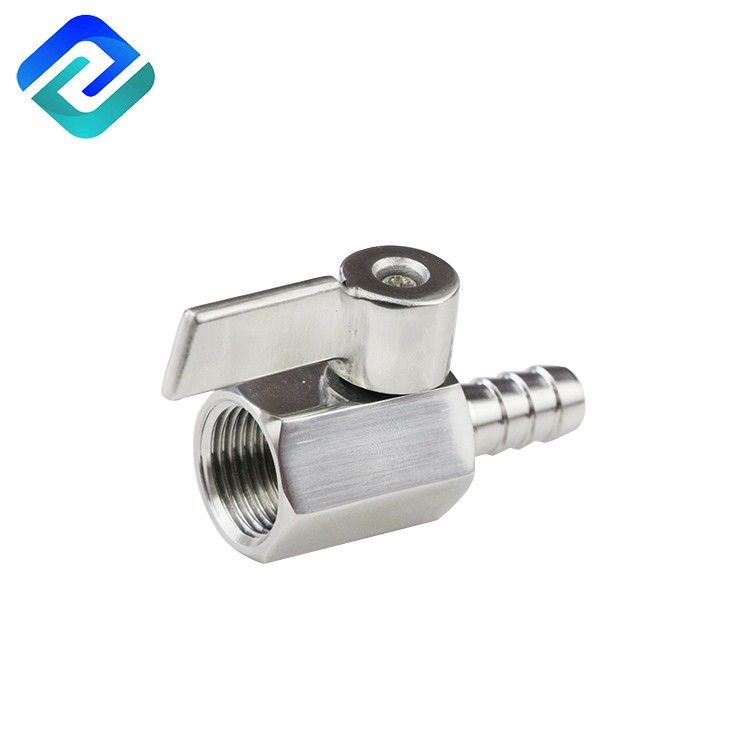

Superior quality 1000wog stainless steel investment casting mini ball valve


Stainless Steel Mini Ball Valve lies in the name itself, it is always in mini size from 1/8" to 1". Stainless Steel Mini Ball Valves always with the polished outside surface.

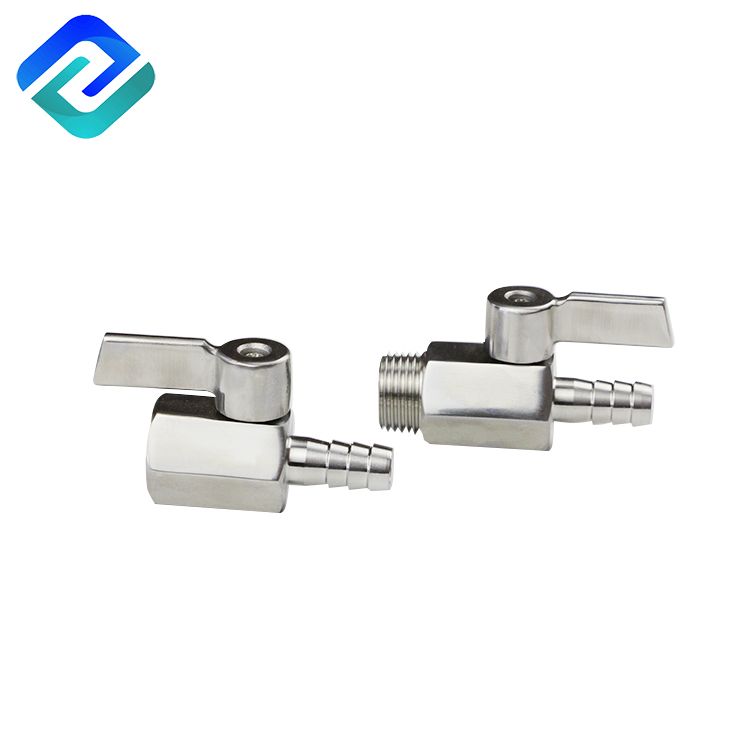

 It is including with FF Stainless Steel Mini Ball Valve, MF Stainless Steel Mini Ball Valve, MM Stainless Steel Mini Ball Valve, Mini Ball Valve M with Hosetails Ends, Mini Ball Valve F with Hosetails Ends, etc.


Superior quality 1000wog stainless steel investment casting mini ball valve




◆Size: 1/8"-1"(DN6-DN25)-Reduced Port.

◆ Max Pressure: PN63

◆ End connection: G Thread, BSPT/BSP/NPT Etc.

◆ Investment Casting Body

◆ Blow-out proof stem

◆ Operation: Manual

◆ Suitable medium: WOG( Water, Oil, Gas) and some corrosive liquid.

◆ Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L

◆ 100% 0.8Mpa air pressure testing to make sure each one meets your requirements.

◆ OEM is acceptable and manufactures special requirements according to your drawings.
